Beginner’s Guide to Installing a Sprinkler Timer

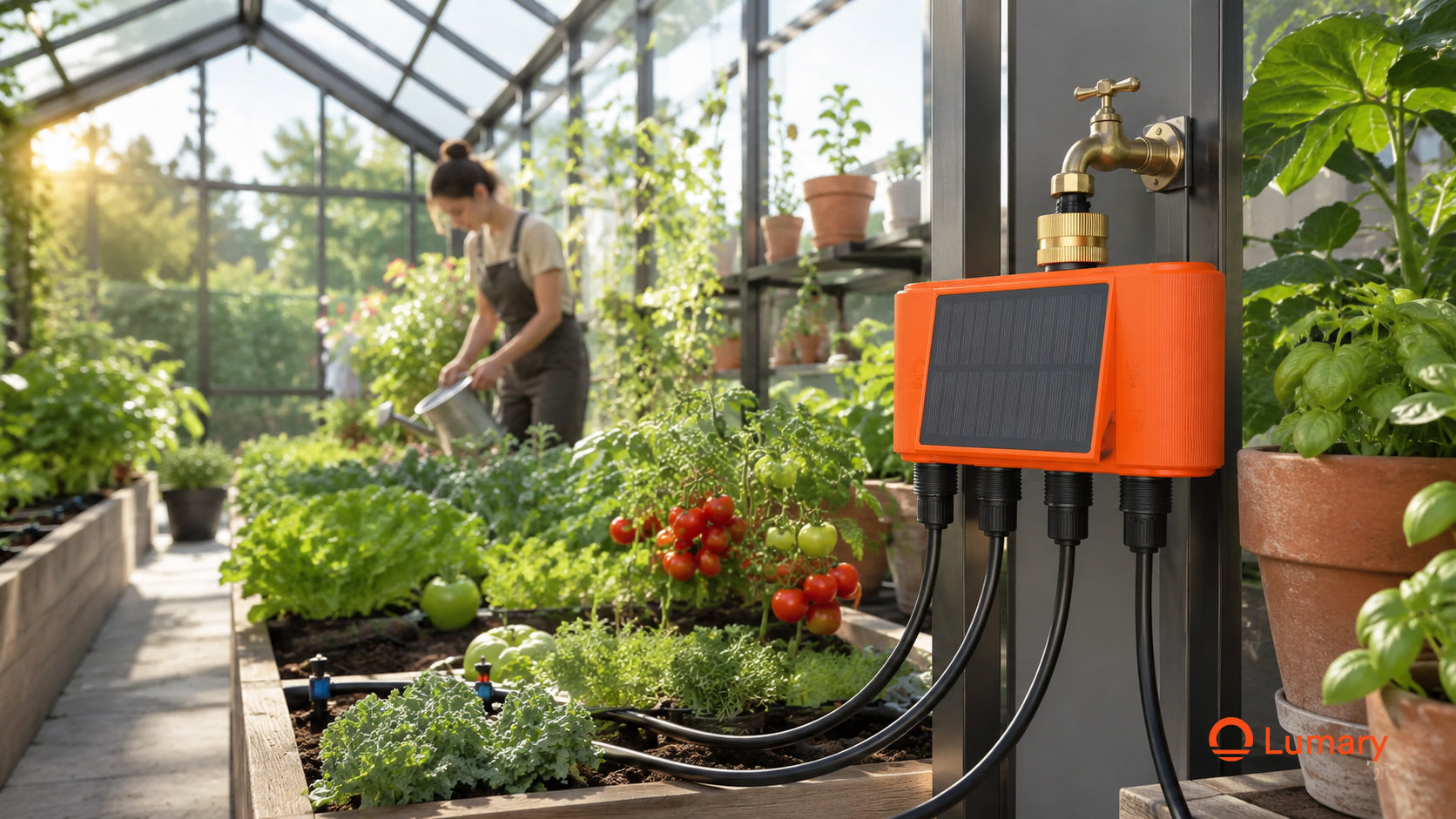

You can set up a sprinkler timer even if you are new. The Lumary Solar WiFi Sprinkler Timer 4 Zone helps you water your garden smarter. It uses solar power and lets you control it with an app. You get:

• Watering at the right time so plants stay healthy

• Control from your phone, which is easy and fast

• Saving water, so your bills go down

• Alerts and updates in real time

You will also get tips to help you avoid mistakes. There are ways to fix problems if they come up.

Key Takeaways

• The Lumary Solar WiFi Sprinkler Timer helps you water your yard automatically. It saves water and lowers your bills.

• Get tools like a screwdriver, drill, and wrench before you start. This makes the installation easier and faster.

• Put the solar panel where it gets direct sunlight. This helps it work better and last longer.

• Use a simple guide to set watering times for your garden. This keeps your plants healthy and happy.

• The Lumary app lets you control your system from far away. You get alerts and can manage watering anytime, anywhere.

Tools and Preparation

Tools Checklist

Before you install a sprinkler system, you need to gather the required tools and materials. Having everything ready will make your step-by-step installation guide much easier to follow. Here is a table to help you see what you need and why:

You may also want these items:

• 3/8″ electric drill (cordless or with a cord)

• Masonry bit (for stucco walls)

• Wood drill bit (for timer cabinet holes)

• Black marker

• Hammer

• Screws and wall anchors

You need these tools to install a sprinkler system safely and correctly. The right tools help you install the valve manifold and install the main line without problems. Always check that you have all the required tools and materials before you start.

System Compatibility

You should check if your current setup matches the new timer. The Lumary Solar WiFi Sprinkler Timer 4 Zone works with most home irrigation systems. It uses solar power, so you do not need to worry about batteries. The built-in WiFi lets you set up the controller from your phone. This timer controls up to four zones, which means you can water different parts of your garden at different times.

You can use the Lumary timer for drip irrigation, lawns, or flower beds. It has a tough, waterproof case and works with many water sources. If you want to install a sprinkler system for the first time, this timer makes the step-by-step installation guide simple. You can install the valve manifold and install the main line, then set up the controller with just a few taps on your phone.

Tip: Always check the voltage and water pressure before you install a sprinkler system. This helps you avoid problems during sprinkler system installation.

Sprinkler Timer Setup

Turning Off Water and Power

You must turn off the water supply before you start working. Find the main water valve for your irrigation system and turn it to the off position. This step keeps you safe and prevents water from spraying everywhere. Next, turn off the power to your old sprinkler timer. Unplug it from the outlet or switch off the circuit breaker. You should always work with the power off to avoid electric shock.

Removing Old Timer

Take a moment to look at how your old sprinkler timer connects to the wires and water lines. Use your phone to take a picture of the wiring. This photo helps you remember where each wire goes. Use a screwdriver to loosen the screws that hold the wires in place. Gently pull the wires out. If your old timer has mounting screws, remove them with a screwdriver or drill. Take the old timer off the wall. Set it aside in case you need to check the wiring later.

Tip: If you see any damaged wires, cut off the bad part and strip the ends. This gives you a clean connection for your new timer.

Mounting the New Timer

Now you can mount your new Lumary Solar WiFi Sprinkler Timer 4 Zone. Choose a spot that gets plenty of sunlight. The solar panel needs direct sun to work well. Avoid placing the timer under trees or near buildings that cast shadows. Good sunlight helps the solar-powered sprinkler timer run smoothly and store enough energy for cloudy days.

• Proper placement of the solar panel is essential for maximizing sunlight exposure.

• Avoid shaded areas from trees or buildings to ensure efficient operation of the solar-powered sprinkler timer.

• Experts emphasize that adequate sunlight is key for effective solar-powered irrigation.

Hold the mounting bracket against the wall. Use a level to make sure it is straight. Mark the screw holes with a black marker. Drill holes for the screws. If you mount the timer on stucco or brick, use a masonry bit. For wood, use a wood drill bit. Insert wall anchors if needed. Screw the bracket into place. Attach the sprinkler timer to the bracket.

The Lumary Solar WiFi Sprinkler Timer 4 Zone has a tough ABS housing and an IP65 waterproof rating. This means you can use it outside without worry.

• The '6' in IP65 means the timer is completely protected against dust.

• The '5' means it can handle water jets from any direction, so rain or sprinkler spray will not hurt it.

• The rugged enclosure and sealing keep the timer working in harsh weather.

• You will spend less time on maintenance and enjoy a longer product life.

You can use this sprinkler timer for lawns, flower beds, or drip irrigation. It works with any water source from 3 to 115 PSI. The solar panel is adjustable, so you can tilt it for the best sun exposure. If you have several garden zones, you can control up to four with this timer.

Common Question:
Can I use the Lumary Solar WiFi Sprinkler Timer 4 Zone if my garden does not get much sun?
Yes, you can. The timer has a USB-C backup port. On rainy days or in low light, you can charge it with a USB-C cable to keep it running.

You have now finished mounting your new sprinkler timer. You are ready to connect the wires and water lines in the next steps.

Wiring and Connections

Connecting Wires

You need to connect the wires from your irrigation system to the Lumary Solar WiFi Sprinkler Timer 4 Zone. This timer lets you control up to four zones, so you can water different areas with custom schedules. Follow these steps for a smooth setup:

1. Lay out the wires from your controller to each zone valve. Use cable ties to keep them neat.

2. Strip the ends of each wire. Connect them to the labeled terminals on your Lumary timer. Match each wire to its zone number.

3. Secure the connections with electrical tape. Make sure no wires are loose.

4. If you replaced an old timer, label each wire before disconnecting. This helps you remember where each one goes.

5. Gently tug each wire to check that it is snug and secure.

Tip: Plan your wire layout before you start. Group cables by purpose and use clear labels. This makes future maintenance easier.

You can use color-coded labels or a label maker for best results. Place labels near the connectors so you can see them easily. Good labeling helps you manage water budgeting for each zone and prevents confusion.

Securing Water Source

You must secure the water source to prevent leaks and ensure safe operation. Here are the steps:

• Turn off the water supply before you connect anything.

• Attach a vacuum breaker to the outlet of the hose end timer. This keeps your water safe and prevents backflow.

• Use shutoff and isolation valves. These let you control water flow for repairs or tests.

• Tighten all fittings with a wrench. Check for leaks by turning the water on slowly and watching each connection.

Note: Always check with your local water utility to make sure your setup meets all rules.

If your garden does not get much sun, you can use the USB-C backup port on your Lumary timer. Plug in a USB-C cable to keep the timer running during cloudy days. This feature helps you keep your watering schedule on track and supports smart water budgeting, even in low light.

Common Question:
What if my Lumary timer loses power during a cloudy week?
You can use the USB-C backup to charge the timer. This keeps your irrigation system working without interruption.

You have now finished wiring and securing your water source. You are ready to restore power and test your system.

Power and Testing

Restoring Power and Water

You have finished wiring and securing your Lumary Solar WiFi Sprinkler Timer 4 Zone. Now, you need to restore power and water to your system. Plug the timer into the outlet or connect the USB-C cable if you use backup power. Turn on the main water valve slowly. Watch for leaks at each connection. If you see water dripping, tighten the fittings with a wrench.

Tip: Always restore power before water. This order helps you avoid electrical issues.

Check the display on your Lumary timer. The screen should light up and show the current status. If you see any error messages, review your wiring and power connections. The solar panel will start charging the timer if sunlight is available.

Manual Test Cycle

You should run a manual test cycle before you test and program your system. This step helps you make sure each zone works correctly. The Lumary Solar WiFi Sprinkler Timer 4 Zone has a physical button for instant manual control. Press the button to activate each zone one by one. You will hear a click and see water flow in the selected area.

Follow these steps to test each zone:

1. Press the manual button to start Zone 1. Watch the sprinklers or drip lines. Check for even water flow.

2. Press again to move to Zone 2. Repeat the check.

3. Continue for Zones 3 and 4.

If you notice a zone does not turn on, check the wiring for that zone. Make sure the wires are secure and connected to the right terminals.

Common Question:
What if one zone does not work during the test?
Check the wire connections for that zone. Make sure the valve is not stuck or blocked.

You need to test and program your system to make sure your garden gets the right amount of water. The Lumary timer makes this easy with its clear display and simple controls. After you finish testing, you can move on to programming schedules and using the app for smart features.

Sprinkler Timer Programming

Setting Schedules

Programming your sprinkler timer starts with a few easy steps. You need to set the clock so your timer knows the correct time. Next, set the date to match today. Pick a start time for your watering. Set run times for each zone, so every part of your garden gets the right amount of water. Choose watering days that fit your plants’ needs. Finally, activate your schedule to make sure your system follows your plan.

Here is a simple list to guide you:

1. Set the clock

2. Set the date

3. Pick a start time

4. Set run times

5. Choose watering days

6. Activate your schedule

You can set multiple start times for different yard sections. This helps you water lawns, flower beds, and vegetable patches at the best times.

Tip: Use cycle and soak watering for clay or sloped areas. This method gives water time to soak in and prevents runoff.

Using the App

The Lumary WiFi app makes programming your sprinkler timer simple. You can set up watering schedules for multiple zones. Adjust start times, durations, and days for each area. The app lets you add multiple start times, so you can water different yard sections as needed. If rain is in the forecast, use the rain delay feature to skip watering and save water. The app sends real-time alerts if there is a problem, like a low power warning or a connection issue.

Common Question:
How do I change my schedule if I am not at home?
You can use the Lumary app on your phone to adjust settings anytime, anywhere.

Smart Features

The Lumary Solar WiFi Sprinkler Timer 4 Zone offers smart features for modern gardens. You can connect an optional smart soil sensor. This sensor checks moisture and triggers watering only when your plants need it. The timer supports weather-based automation. It skips watering on rainy days, which prevents overwatering. You can set multiple start times and use cycle and soak watering for the best results. The timer tracks water use for each zone, helping you save money and care for your garden.

Note: The Lumary timer works well for different yard sections, from lawns to flower beds. You get flexible control and smart watering with just a few taps.

Troubleshooting

Common Issues

You might have problems when you set up or use your timer. Here are some quick ways to fix smart sprinkler timers:

• If the timer will not turn on or off, check for power loss. Make sure you picked AM or PM correctly. Check that the timer is not set to 'off'.

• If zones are skipped or the schedule is wrong, look at your settings. Check run times and see if the valves are connected right.

• If the display shows errors or buttons do not work, look for power surge damage. Change the backup battery if it is dead.

If you use the Lumary Solar WiFi Sprinkler Timer 4 Zone, check if the app connects. Make sure your timer is close enough to your WiFi. Point the solar panel at the sun. Use the USB-C backup if it is cloudy and you need more power.

Common Question:
Why does my Lumary timer skip watering on some days?
The timer checks the weather. It skips watering if rain is coming to stop too much water.

Mistakes to Avoid

You can stop many problems by using expert tips for sprinkler use. Here is a table with mistakes and what causes them:

Always check your WiFi signal. Put the timer where it gets lots of sun. Remember to use the seasonal guide to change watering times when the weather changes.

When to Consult Support or Resources

Ask for help or look at resources if:

• You must follow local plumbing or electrical rules.

• You want a plan before you start putting in your system.

• You want a pro to check your yard.

If you have trouble with WiFi or solar charging, contact Lumary support. The manual and app give step-by-step help. Hold the button for five seconds to put the timer in winter sleep mode if it gets colder than 32°F.

Tip: Keep your work area neat and clean. This helps you find problems fast and fix them easily.

You can install your smart sprinkler timer by following these main steps:

1. Check your current system and wiring.

2. Turn off power for safety.

3. Remove the old controller and label wires.

4. Connect the new timer and wires.

5. Test each zone.

Enjoy the convenience of the Lumary Solar WiFi Sprinkler Timer 4 Zone. Automated watering saves water, lowers bills, and keeps your garden healthy. Review troubleshooting tips if you need help. Smart timers adjust for weather, so your plants always get the right amount of water.

FAQ

How do I connect the Lumary timer to WiFi?

You open the Lumary app on your phone. Select your timer. Follow the steps to connect to your home’s 2.4GHz WiFi. The app shows a green checkmark when the connection succeeds.

Can I use the timer during cloudy or rainy days?

Yes, you can. The timer stores solar energy with its supercapacitor. If sunlight is low, plug in a USB-C cable for backup power. Your watering schedule stays on track.

What happens if my garden needs different watering times?

You set custom schedules for each zone. The Lumary timer lets you adjust start times and durations. You can water lawns, flower beds, and vegetable patches separately.

Is the Lumary timer safe to use outdoors?

You use it outside without worry. Rain and dust will not harm the timer.

How do I activate winter sleep mode?

Hold the physical button for five seconds. The timer enters sleep mode. You protect the device from freezing temperatures below 32°F.
