To measure a roofline for permanent outdoor lights, measure the exact path where the lights will be mounted—not the width of the house, the roof area, or the property perimeter. Add every horizontal eave, sloped gable edge, porch return, garage section, dormer, corner transition, and approved connection to another illuminated section. Record the distance from the planned controller or power source to the first light separately. The resulting route map, rather than one overall number, determines the appropriate light-kit length and installation plan.
Begin with a front-elevation sketch of the house. Divide the intended lighting path into individually labeled sections such as A, B, C, and D. A simple ranch may need only four horizontal measurements, while a two-story house with gables can require a dozen or more. Write down each dimension immediately and indicate whether it represents illuminated roofline, a corner, or a non-illuminated transition. This avoids the common mistake of adding visible eaves while forgetting the cable required to reach a second roof level or cross an architectural gap.
Whenever practical, measure accessible one-story sections from the ground with a tape measure, measuring wheel, or laser distance meter. Higher sections can be estimated from construction drawings, known wall dimensions, scaled photographs, or aerial measurement tools. Treat aerial results as a planning estimate because roof pitch, image resolution, trees, perspective, and overhangs can affect the result. A measurement traced across a satellite image may represent horizontal projection rather than the actual sloped distance along a gable.
Sloped rooflines require an additional calculation. A gable edge forms the hypotenuse of a right triangle. If you know its horizontal run and vertical rise, calculate one sloping side as:
Sloped length = √(horizontal run² + vertical rise²)
For a symmetrical 24-foot-wide gable with an 8-foot rise, the horizontal run on each side is 12 feet. Each slope is therefore √(12² + 8²), or approximately 14.4 feet. Both slopes total approximately 28.8 feet before accounting for any overhang included in the intended mounting path. Resources explaining roof rise, run, and slope calculations can help verify the geometry, but irregular gables, hips, dormers, and unequal slopes are better measured from reliable plans or by a qualified professional.
Do not climb an unsafe roofline merely to obtain a more exact number. The Canadian Centre for Occupational Health and Safety’s extension-ladder guidance calls for firm, level footing, an appropriate working angle, secure support, and clearance from power lines. Werner’s explanation of the 4-to-1 ladder setup rule places the ladder base approximately one foot away from the wall for every four feet of vertical height. If a second-story peak cannot be measured while maintaining a stable working position, use an aerial roof report or hire an installer to verify it.
Power location must be mapped at the same time as roofline length. An outdoor-lighting route that measures 96 feet may not fit a 100-foot configuration if the measured total excludes the distance from the receptacle to the first light or assumes an unsupported transition. The CPSC’s GFCI guidance identifies outdoor receptacles as locations where ground-fault protection is important. If a suitable outlet does not already exist, do not treat an extension-cord workaround as a permanent electrical plan; ask a qualified electrician to evaluate the required power arrangement.
The mounting surface matters as much as the number of feet. Permanent lights are commonly positioned beneath an eave or soffit, but the visible panel may not provide adequate support for every fastener. The Polymeric Exteriors Products Association’s soffit-installation guidance illustrates how soffit assemblies depend on channels, framing, and fastening locations. Before ordering, identify whether the intended surface is wood, vinyl, aluminum, fiber cement, stucco, or another material and confirm that Lumary’s mounting method can be used without damaging the exterior assembly.
Community installation discussions also reveal why one total measurement is not enough. In a Reddit discussion about measuring permanent-light runs, the homeowner distinguished a map-based linear measurement from the additional distance created by roof pitch. Other owners describe discovering unplanned transitions between lower eaves and upper peaks only after laying out their lights. These examples are anecdotal rather than manufacturer instructions, but they reinforce a useful planning rule: separately record illuminated footage, connection footage, and access constraints.
Finally, compare the completed route with the manufacturer’s documented system architecture. The Lumary Permanent Outdoor Lights 3 is offered in 100-, 150-, 200-, and 300-foot configurations. Lumary states that the system can be cut to size or expanded up to 1,200 feet, with additional power supplies required every 300 feet and 24.6-foot extension strings sold separately. Cutting, extension placement, controller location, and power-supply boundaries must follow the user manual. A measured roofline tells you how much coverage you need; it does not independently determine which electrical modifications are permitted.
Product Recommendation Analysis
The Lumary permanent roofline-lighting system is particularly relevant to measurement-heavy projects because it provides four defined starting lengths: 100, 150, 200, and 300 feet. Those configurations contain 60, 90, 120, and 180 lights respectively. A homeowner can therefore convert a section-by-section takeoff into a specific initial configuration instead of combining an undefined number of unrelated strings.
Lumary describes the system as cuttable and expandable, but those capabilities should not be interpreted as permission for improvised field wiring. The product page directs customers to follow the user manual for recommended system length, extension limits, and power requirements. Separately available 24.6-foot light segments, 12-foot extension cords, connectors, and power supplies can help accommodate complex layouts when used in the approved arrangement. Additional supplies are required at 300-foot intervals for longer installations.
The physical design also affects the measurement decision. The patented slide-base is intended to produce a clean, low-profile installation while helping conceal wiring, and mounting hardware is included. However, a neat base cannot correct an unsuitable soffit, inaccessible gable, or inaccurately planned transition. Measure the intended mounting plane rather than the fascia’s apparent street-facing outline, confirm the substrate, and include the chosen offset consistently around corners and peaks.

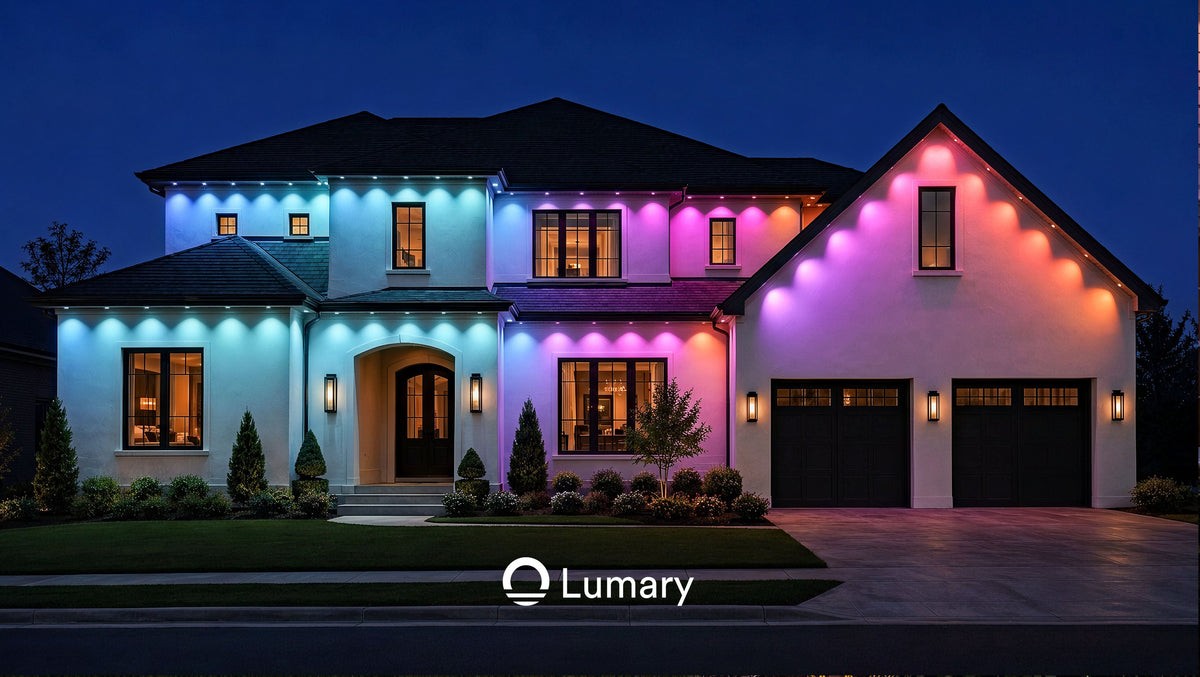

After installation, the Lumary Permanent Outdoor Lights 3 supports adjustable 2200K–6500K white light, RGBAI color, 32-zone control, more than 150 preset scenes, and control through the Lumary app, remote, control box, Alexa, Google Home, WLED, and Home Assistant. These features make a complete architectural route more versatile, but the purchasing decision should still begin with an accurate physical and electrical map.
Technical Specification Table
| Specification | Lumary Permanent Outdoor Lights 3 |
|---|---|
| Model designations | PO3A1 / PO3A2; PO3B1 / PO3B2; PO3C1 / PO3C2; PO3D1 / PO3D2 |
| Housing colors | White / Black |
| Standard lengths | 100 ft / 150 ft / 200 ft / 300 ft |
| Number of lights | 60 / 90 / 120 / 180 LEDs |
| Published power | 48W / 72W / 96W / 144W |
| Light-string input | DC 36V; 1.33A / 2A / 2.66A / 4A |
| Power-adapter input | 120V AC, 50/60Hz |
| Light specification | RGBAI + CW |
| Output per light | 60 lumens |
| White-light range | 2200K–6500K |
| Zone control | 32 zones |
| Smart control | Lumary app, remote, control box, Alexa, Google Home, WLED, Home Assistant |
| Ingress-protection ratings | String lights: IP67; control box: IP67; adapter: IP67 |
| Operating-temperature range | -4°F to 113°F (-20°C to 45°C) |
| Expansion | Up to 1,200 ft; additional power supplies required every 300 ft |
| Add-on light segment | 24.6 ft, sold separately |
| Installation design | Patented low-profile slide-base with included mounting hardware |
| Custom fitting | Product page states that the system can be cut to size; follow the user manual for approved procedures and limits |
Roofline Measurement and Purchasing Framework
A reliable takeoff separates geometry from system configuration. First calculate the physical illuminated path. Next identify gaps, level changes, controller placement, and the route to power. Only then should you select a kit and determine whether approved extensions, connectors, cuts, or additional supplies are required.
Use a worksheet with one row for every physical section. Record the section ID, location, illuminated length, non-lighted transition, mounting material, height, and measurement method. Add the illuminated column and transition column separately. This makes it easier to recognize whether an apparent 140-foot project actually fits a 150-foot system or needs a different layout.
| Key Purchasing Criterion | Common Sign of a Poor-Quality Unit | How This Lumary Permanent Outdoor Lights 3 Addresses It | Long-Term Usage / Performance Impact |
|---|---|---|---|
| Defined system lengths | Product is sold by vague coverage claims rather than measured footage | Provides 100-, 150-, 200-, and 300-ft configurations | Makes it easier to match the purchase to a documented takeoff |
| Light count by length | Buyers cannot determine how many light points are included | Lists 60, 90, 120, and 180 LEDs for the four lengths | Supports more realistic visual and zone planning |
| Adaptability | No documented way to handle a route that falls between kit lengths | Product page states that the system can be cut and expanded; 24.6-ft segments are sold separately | Can reduce excess cable or coverage shortages when configured according to the manual |
| Transition planning | Marketing discusses only illuminated footage | Compatible extension cords and connectors are listed among accessories | Allows non-lighted gaps to be planned without treating every transition as illuminated roofline |
| Power boundaries | Expansion is promoted without explaining when another supply is needed | Requires additional power supplies every 300 ft | Helps prevent a large layout from being planned as one unlimited electrical run |
| Maximum expansion | Buyers must guess whether multiple buildings or long elevations are supported | Publishes an expansion ceiling of 1,200 ft | Provides an upper planning boundary, subject to documented segmentation |
| Mounting system | Loose wiring and inconsistent clips make accurate alignment difficult | Uses a patented slide-base intended to conceal wiring and create a low-profile line | Supports more consistent appearance when the substrate and route are properly prepared |
| Component weather ratings | Only the light heads have a disclosed outdoor rating | Publishes IP67 for the string, control box, and adapter | Reduces uncertainty about component ratings, although correct placement remains essential |
| Everyday white light | A permanent route provides only decorative saturated colors | Offers adjustable 2200K–6500K white light with RGBAI color | Makes the measured installation useful for ordinary evenings as well as events |
| Zoned operation | The entire measured route must always display one setting | Provides 32-zone control | Lets long rooflines be divided into visually useful sections after installation |
| Multiple control methods | The system becomes unusable when one phone or network path is unavailable | Supports app, remote, control box, voice platforms, WLED, and Home Assistant | Gives households more ways to operate a permanently installed system |
| Published electrical data | No wattage or voltage information is provided for different lengths | Lists power and DC current for all four configurations | Helps the installer plan system size and discuss outlet needs before mounting |
Competitive Landscape
Roofline measurement matters across every permanent-light brand, but products differ in segment length, permitted cutting, extension architecture, power location, mounting hardware, and control ecosystem. A 150-foot measurement does not mean that every manufacturer’s 150-foot package will follow the same path. Before comparing price, buyers should redraw the route for each candidate system and check where its controller, blank extensions, cuts, and power supplies may legally be placed.
Govee is one of the most visible DIY competitors. WIRED’s permanent outdoor lighting comparison found its Permanent Outdoor Lights Pro relatively straightforward to install and noted both adhesive and screw-based attachment. For measurement purposes, its cut-and-splice capability can help with varied gables and gaps, although the review warns that customization is not necessarily a simple task. Buyers should compare the exact Govee generation because connection rules and included section lengths can differ.
Eufy competes with flexible routing, RGB plus warm- and cool-white channels, app-based scenes, and Matter support on selected versions. The same WIRED field review reports that Eufy’s S4 accommodated nonstandard architectural features through extensions and configurable sections. This can be helpful on homes with mixed eave depths, but it does not remove the need to measure each slope, mark the power location, and verify where connections will remain protected.
GE Cync targets buyers who want a comparatively accessible smart-eave-light package. WIRED found its 100-foot Dynamic Effects Outdoor Smart Eave Lights easy to install and noted a long power cord. That cord may make the outlet-to-first-light distance easier to manage, but the buyer must still determine how much of the package is available for the illuminated route. A long lead cable should never be counted as roofline lighting.
Twinkly occupies a different category. Its app-mapped strings can be arranged around balconies, railings, trees, and temporary exterior displays, making them more forgiving when the user does not want a fixed eave line. TechRadar’s Twinkly Strings review focuses on camera-assisted mapping and animated effects rather than a concealed architectural track. Twinkly can be appropriate when the building lacks a suitable soffit, but it is not a direct substitute for every permanent puck-light installation.
JellyFish Lighting represents the professionally installed side of the market. Instead of asking the homeowner to translate roof dimensions into a consumer kit, an installer typically surveys the property, fabricates the route, and integrates the power and track. The higher service cost may be justified on tall gables, steep grades, or complex facades where obtaining measurements and mounting hardware safely is more difficult than configuring the lights themselves.
Enbrighten offers another year-round architectural-lighting approach. Good Housekeeping’s coverage of smart holiday and outdoor lighting includes Enbrighten’s Vibe Eternity Accent Permanent Outdoor Lights as a permanent option. As with any competitor, the useful comparison is not simply nominal footage: examine section sizes, node spacing, controller placement, mounting hardware, weather ratings, and the treatment of unlit gaps.
Lumary’s distinguishing planning advantages are its four stated starting lengths, 24.6-foot extension strings, published 300-foot supply interval, 1,200-foot expansion ceiling, and slide-base mounting design. The Lumary expandable outdoor-light platform is therefore relatively straightforward to model on paper. Its suitability still depends on whether the measured house can be translated into a manufacturer-approved sequence without unsafe access or improvised electrical work.
Application Scenarios
1. One-Story Ranch With Mostly Straight Eaves
Consider an illustrative one-story ranch with four intended illuminated sections: a 28-foot front eave, an 18-foot garage eave, a 16-foot porch return, and a 22-foot side section. The visible illuminated total is:
28 + 18 + 16 + 22 = 84 feet
That result suggests that a 100-foot configuration might be appropriate, but it is not yet a complete purchasing measurement. The homeowner must also determine whether the four sections are physically continuous, where the system begins, how the route turns each corner, and whether any cable must cross an unlit space. A five-foot gap between the porch and garage cannot simply be ignored because the controller still needs an approved way to reach the next illuminated section.
Draw the house from above and from the front. Label the visible runs A through D, then add a separate transition row between every two runs. Mark the outdoor receptacle and proposed controller location. If the first visible light begins three feet from the controller and an approved six-foot transition is needed elsewhere, the route is no longer merely an 84-foot lighting calculation. Confirm whether those distances are served by included leads or compatible accessories rather than subtracting them informally from the light-string length.
This is also the right time to inspect the soffit. The PEPA soffit installation guide shows why the visible panel should not automatically be treated as structural backing. Identify the framing or other support appropriate to Lumary’s mounting system, choose a consistent distance from the wall, and verify that vents, downspouts, cameras, and garage-door trim do not interrupt the line.
The 100-foot Lumary Permanent Outdoor Lights 3 includes 60 lights and is listed at 48W. If the documented route fits within its approved architecture, it provides reasonable room above the 84-foot visible total. Ground-test and lay out the sections before mounting. Do not install the first 70 feet and assume the remaining geometry will solve itself; reconcile every section, transition, and endpoint first.
2. Two-Story Facade With a Symmetrical Gable
Imagine a two-story house with a 24-foot-wide front gable that rises eight feet from the eave line to the peak. Measuring only the 24-foot width would materially underestimate the illuminated route because the lights follow the two slopes rather than a horizontal line across the facade.
For a symmetrical gable, divide the width in half to find the horizontal run:
24 ÷ 2 = 12 feet
Then calculate one slope:
√(12² + 8²) = √208 ≈ 14.4 feet
Both sides total approximately:
14.4 × 2 = 28.8 feet
This calculation is illustrative. It assumes equal slopes, known rise and run, and no additional sloped overhang beyond the stated dimensions. If the gable is asymmetric, the peak is offset, or the mounting path begins beyond the wall line, calculate each side separately. Construction drawings may supply reliable dimensions, while a laser measurement or scaled photograph can provide a cross-check from the ground.
Access is the limiting factor. An extension ladder used at a second-story gable must stand on firm, level ground at an appropriate angle, and the installer must avoid overreaching. The CCOHS ladder guidance also advises maintaining distance from power lines and notes that work at greater heights may require a fall-protection program. A homeowner who cannot safely reach the mounting line should not turn a geometry check into an uncontrolled climbing task.
Add the 28.8-foot gable result to every lower eave and return. If the remaining front sections total 96 feet, the overall illuminated path becomes approximately 124.8 feet before transitions. That points toward evaluating the 150-foot Lumary smart roofline-lighting configuration, not the 100-foot option. Before buying, confirm how the lower route reaches the upper gable and whether the planned transition is permitted. For a tall facade, a practical hybrid is to complete the drawing and calculations yourself, then pay an insured installer to verify measurements and perform the elevated mounting.
3. L-Shaped Home With Returns, Dormers, and an Unlit Gap
An L-shaped home creates a measurement problem because a street photo makes the roofline appear continuous even when the mounting path changes direction or disappears behind architectural elements. Assume the intended design includes 52 feet across the main front, 31 feet along the side wing, two 11-foot dormer slopes, and a 17-foot porch eave. The illuminated footage is:
52 + 31 + 11 + 11 + 17 = 122 feet
Now suppose the route also includes a four-foot inside return, a seven-foot gap without a usable soffit, and an eight-foot path from power to the first light. These figures should not automatically be combined into one “141-foot roofline” number. The 122 feet describes visible lighting; the remaining 19 feet describes routing challenges that may require lead cable, an approved extension, a different controller position, or a revised starting point.
Create two totals in the worksheet: illuminated footage and non-lighted connection footage. Photograph each transition and note its surfaces. The seven-foot gap may cross brick, stucco, open rafters, or a vertical wall, and each condition changes the mounting decision. WIRED’s assessment of permanent-light compatibility notes that homes without suitable eaves, along with some stucco and cross-eave designs, can be difficult or unsuitable for a standard installation.
Next, decide where the route should visually begin and end. It may be cleaner to omit one dormer, establish two approved powered sections, or use zones to separate the porch from the main facade. Measurement is therefore not merely purchasing arithmetic; it is an iterative design process. Draw at least two route options before deciding which one uses the building most naturally.
A 150-foot Lumary permanent eave-light system may appear close to the 122-foot visible requirement, but the final selection depends on the permitted transition configuration. Lumary states that the system can be cut to size and offers 24.6-foot add-on strings, 12-foot extension cords, and connectors. Use only documented combinations. The strongest plan is the one that reaches every intended section without a cable stretched across an unsupported gap or an improvised splice hidden where it cannot be inspected.
4. Main House and Detached Garage Totaling 360 Feet
Suppose a property owner wants 240 feet of illumination on the main house and 120 feet on a detached garage. The visible total is:
240 + 120 = 360 feet
Although 360 feet is below Lumary’s stated 1,200-foot expansion ceiling, this is not automatically one continuous 360-foot installation. The driveway between the structures, separate outlet locations, network coverage, and the published power-supply boundary all affect the design.
Draw the two buildings as independent physical zones. For each one, list its eaves, gables, returns, controller position, outlet, and intended start point. Do not include the open distance across the driveway as ordinary roofline footage or assume a cable can be routed between buildings. A detached garage may be better treated as a separately powered installation that coordinates through the control ecosystem rather than as a physical extension of the house.
Lumary requires additional power supplies every 300 feet. As a preliminary planning calculation, 360 feet occupies at least two 300-foot supply intervals:
Ceiling (360 ÷ 300) = 2
This does not specify where supplies, adapters, or controllers should be placed. The manufacturer’s manual must define the actual segmentation. If either building lacks a suitable receptacle, consult a qualified electrician. The CPSC’s GFCI fact sheet provides a useful safety reference for outdoor receptacle protection.
The expandable Lumary Permanent Outdoor Lights 3 platform supports smart control through Lumary, Alexa, Google Home, WLED, and Home Assistant, which can help coordinate the two structures after installation. Its 32-zone control can also divide long rooflines into logical visual sections. However, software coordination should not be confused with physical continuity.
For a project of this scale, obtain a second measurement using plans, aerial imagery, or an installer’s site survey. Reconcile any difference section by section rather than averaging the totals. A five-percent error on 360 feet is 18 feet—enough to affect extensions, endpoints, and paid installation time. The correct purchase emerges from two verified building plans, not from treating the property as one oversized string.
5. Measuring a Tall or Irregular Home Without Unsafe Roof Access
Consider a three-story home with multiple gables, trees that partially obscure the facade, and sloped ground along one side. The owner can measure the garage and porch safely but cannot reach the upper mounting line. The best method is a layered estimate: ground measurements for accessible references, construction documents if available, scaled imagery for high sections, and professional verification before ordering or installation.
Start by measuring a known horizontal feature, such as the garage-door width or a first-story wall. Use that value to check the scale of a straight-on photograph or aerial image. Trace every intended upper eave and gable as a separate line. If the measurement service distinguishes eaves from rakes, confirm that you are ordering for the edges where lights will actually mount rather than for ridges, valleys, or the complete roofing perimeter.
Aerial tools can accelerate planning, but their result should be labeled “estimated” until it is reconciled with field conditions. Satellite imagery may not clearly show soffit depth, small dormers, overhangs, or the vertical distance between roof levels. A photo also cannot verify that a mounting surface is flat or that a transition cable can pass around a downspout without abrasion. Use the remote estimate to choose a likely product range, not to authorize drilling.
Avoid using a ladder on sloped, soft, icy, or obstructed ground simply to reduce uncertainty by a few feet. CCOHS recommends firm, level ladder footing and warns against using ladders near power lines. For high or irregular properties, paying a contractor for measurement and access can be less expensive than purchasing the wrong configuration—or attempting an installation that cannot be completed safely.
Once the route is verified, compare the total with Lumary’s 100-, 150-, 200-, and 300-foot configurations and approved expansion plan. The weather-rated Lumary outdoor lighting system lists IP67 protection for the lights, controller, and adapter. Intertek’s explanation of IEC 60529 ingress-protection testing clarifies that an IP rating describes defined dust and water tests; it does not compensate for poor cable routing, unsuitable fasteners, or inaccessible maintenance points. The final measurement plan should therefore document not only length but also how every component can be installed and inspected.
Editorial Assessment
The most reliable roofline measurement is a route plan, not a single perimeter figure. Measure every intended illuminated section, calculate sloped gables from actual geometry, and record unlit transitions separately. Then add the controller, outlet, mounting surface, and access information that determines whether the physical footage can be converted into a compliant system layout.
For a simple one-story house, a careful homeowner can often obtain adequate measurements with a tape, measuring wheel, laser, and ground-level sketch. Complex peaks and second-story routes justify construction plans, scaled photographs, aerial reports, or professional verification. Remote methods are useful cross-checks, but they do not reveal every soffit condition or connection obstacle.
Lumary makes the purchasing comparison relatively clear by offering four standard lengths and publishing its light counts, electrical ratings, extension segment, expansion ceiling, and 300-foot supply interval. The product page also states that the system can be cut to size. Even so, the user manual—not a generic lighting tutorial—must govern cuts, connectors, extensions, and power placement.
Do not buy precisely the number of feet produced by a rough front-width calculation, and do not add an arbitrary percentage without examining what that additional footage would actually do. A modest planning allowance may help absorb measurement error, but excess illuminated string can create its own endpoint problem. Choose the configuration only after the complete route is reconciled with Lumary’s approved architecture.
Who Should Buy This Product: Choose the Lumary Permanent Outdoor Lights 3 if you want a permanent, low-profile system for adjustable white and color lighting, your home has a suitable mounting path, and you are willing to document each eave, slope, transition, and power location before ordering. Use professional measurement or installation when upper levels, steep terrain, nearby conductors, or uncertain substrates make direct verification unsafe.
Frequently Asked Questions
Q1. Should I add extra footage to my roofline measurement?
Allow for measurement uncertainty, but do not automatically add a universal percentage and assume the excess can be hidden. Permanent-light systems have defined node spacing, connection rules, cutting procedures, and endpoints. First create an exact section-by-section takeoff and then compare it with the available 100-, 150-, 200-, and 300-foot configurations.
If an accessible route measures 94 feet, a 100-foot option may be logical after confirming the controller lead, endpoint, and approved cutting rules. If a preliminary aerial estimate measures 98 feet, obtain a field verification because a small error could change the configuration. Lumary states that the system can be cut to size and expanded with separately sold segments, but the manual must govern those operations.
Keep any estimating contingency visible in your worksheet. For example, record “verified route: 94 feet” and “planning allowance: 5 feet” rather than replacing both with an unexplained 99-foot total. This preserves the information needed to revise the installation intelligently.
Q2. Can Google Maps or satellite imagery measure my roofline accurately?
Aerial imagery can provide a useful first estimate, especially for inaccessible upper rooflines, but it should not be the only measurement for a complex purchase. Image resolution, tree cover, roof overhangs, perspective, property-image age, and calibration can introduce error. Aerial tools may also measure a gable’s horizontal projection rather than its true sloped mounting length.
Use a known ground dimension to check scale, trace each section separately, and compare the result with construction plans or accessible tape measurements. Community discussions such as this permanent-light measurement thread illustrate the common distinction between a map-based linear result and the additional length created by roof pitch.
A paid roof report or installer survey can be worthwhile for a two- or three-story house. Even then, specify that you need the intended eaves and gable rakes, not total roof area or every roof edge. The lighting path is a selective linear measurement.
Q3. How do I measure a gable for permanent outdoor lights?
For a symmetrical gable, measure its full horizontal width and vertical rise. Divide the width by two to obtain the run of one side, then use the Pythagorean theorem:
One slope = √((width ÷ 2)² + rise²)
Multiply the result by two if both sides will be illuminated. For example, a 20-foot-wide gable with a 6-foot rise has a 10-foot run on each side. Each slope is √(10² + 6²), approximately 11.7 feet, so the two slopes total about 23.3 feet.
Add any overhang only if it is not already represented in the dimensions and the lights will follow it. Measure unequal sides separately when the peak is off-center. The formula describes geometry; it does not verify the soffit condition or safe access. If reliable rise and run dimensions are unavailable, use plans, a measurement service, or a qualified installer rather than climbing into an unsafe position.
Q4. Do extension cords and gaps count as part of the light length?
They count in the installation plan, but they should not be combined blindly with illuminated footage. Record three categories separately: illuminated light-string length, approved non-lighted extension length, and the power/controller lead. This distinction prevents a homeowner from buying 150 feet of illuminated lights for a 130-foot eave and then discovering that a 20-foot architectural gap cannot be crossed with ordinary lighted string.
Identify every transition between roof levels, around chimneys, across areas without soffits, and between separate structures. Then compare those gaps with Lumary’s documented accessories and user-manual limits. The product page lists a 12-foot extension cord, connectors, 24.6-foot light segments, and additional power supplies, but their presence does not mean they can be combined in every order.
If a route requires household extension cords, exposed connections, or wiring modifications as a permanent solution, stop and redesign it. Outdoor component ratings and approved system connections remain essential even when the arithmetic appears to fit.
Q5. Should I measure the roofline myself or hire a professional?
Measure it yourself when the intended path is visible, accessible from stable ground, and simple enough to verify with two methods. A one-story ranch with straight eaves is often suitable for a tape measure, measuring wheel, or laser-assisted survey. Ground-test the total by laying out the labeled system sections before mounting.
Hire a professional or purchase a measurement report when the design includes second- or third-story gables, steep or uneven terrain, nearby power lines, hidden transitions, complex dormers, or uncertain mounting materials. The CCOHS extension-ladder guidance emphasizes correct angle, stable footing, secure support, and distance from electrical conductors. A measurement is not worth obtaining through unsafe access.
A hybrid approach is often efficient: prepare the route sketch, outlet map, and preliminary dimensions yourself, then ask the installer to verify only the high or ambiguous sections. This gives you control of the design while assigning hazardous access and final field confirmation to someone with appropriate equipment and experience.
