How Do You Measure a Roofline Before Buying Permanent Outdoor Lights?

To measure a roofline for permanent outdoor lights, measure the exact mounting path the lights will follow—not the width of the house, the roof’s square footage, or the property perimeter. Divide that path into straight sections, measure every horizontal eave and sloped gable edge you intend to illuminate, record unlit transitions separately, and identify the route from the lights to the controller, power adapter, and outdoor receptacle.

A reliable roofline measurement should answer five questions before you buy:

1. Which roof edges will actually receive lights?

2. How long is each illuminated section?

3. Where must the system cross an unlit gap?

4. Where will the run begin and end?

5. Can the selected kit and power architecture reproduce that route without an improvised modification?

For a simple one-story home, measuring may involve only the front eave and garage. A two-story house with dormers, gables, returns, and separate roof levels requires a section-by-section drawing. The total lighted footage is only one part of the answer; the order of those sections and the transitions between them determine whether the system can actually be installed.

The basic formula is:

Total required system length = illuminated roofline sections + approved transitions to and between sections

Do not automatically add every visible distance to the illuminated total. A cable route from a receptacle to the first light, for example, may use a dedicated lead or extension rather than a lit segment. A jump between a lower eave and an upper gable may also need an approved extension arrangement. Those distances should be measured, labeled, and compared with the product instructions separately.

For the Lumary Permanent Outdoor Lights 3, the current standard configurations are 100, 150, 200, and 300 feet. They contain 60, 90, 120, and 180 lights respectively. Lumary also publishes 24.6-foot expansion segments, support for systems up to 1,200 feet, and a requirement for additional power supplies every 300 feet. These specifications make an accurate roofline takeoff especially valuable: the measurement must identify not only total footage but also where each powered section and transition can be located.

A roofline is made of different architectural edges. The lower horizontal edge of a roof is generally called an eave. A sloped edge along the side of a gable is called a rake. A hip is the external sloping intersection of two roof planes, while a valley is the internal intersection where two planes direct water toward the same channel. The National Roofing Contractors Association glossary provides standardized definitions that can help homeowners and installers label a drawing consistently.

Permanent lights are most commonly mounted beneath eaves or along suitable soffit and fascia areas rather than on every ridge, hip, or valley. Therefore, do not measure the entire roof as if every edge will be illuminated. Decide which lines should be visible from the street, driveway, backyard, or patio, and measure only the paths included in the design.

The safest measurement method starts from the ground. Use architectural plans, a laser distance meter aimed at suitable surfaces, a measuring wheel along corresponding ground lines, accessible first-floor measurements, known building dimensions, or aerial tools to create a preliminary estimate. Google Earth includes a distance-measurement feature, but Google notes that web and mobile distance results do not account for elevation changes. A map measurement can therefore help estimate horizontal eaves, while sloped gables and elevation transitions require additional verification.

Do not climb onto a roof merely to improve an estimate. For ladder-accessible sections, use equipment appropriate for the working height, surface, and task. OSHA’s extension-ladder guidance recommends a 4:1 setup relationship, stable footing, three-point contact, keeping the body within the rails, and maintaining at least 10 feet of clearance from power lines. Although OSHA workplace rules are not a substitute for residential project instructions, the physical hazards they describe remain relevant to homeowners.

If a roofline cannot be measured or installed without leaning, stepping onto a roof, working above sloped ground, approaching electrical conductors, or repeatedly repositioning a tall ladder, obtain a professional measurement. A slightly more accurate DIY number is not worth a fall or electrical hazard.

Product Recommendation Analysis

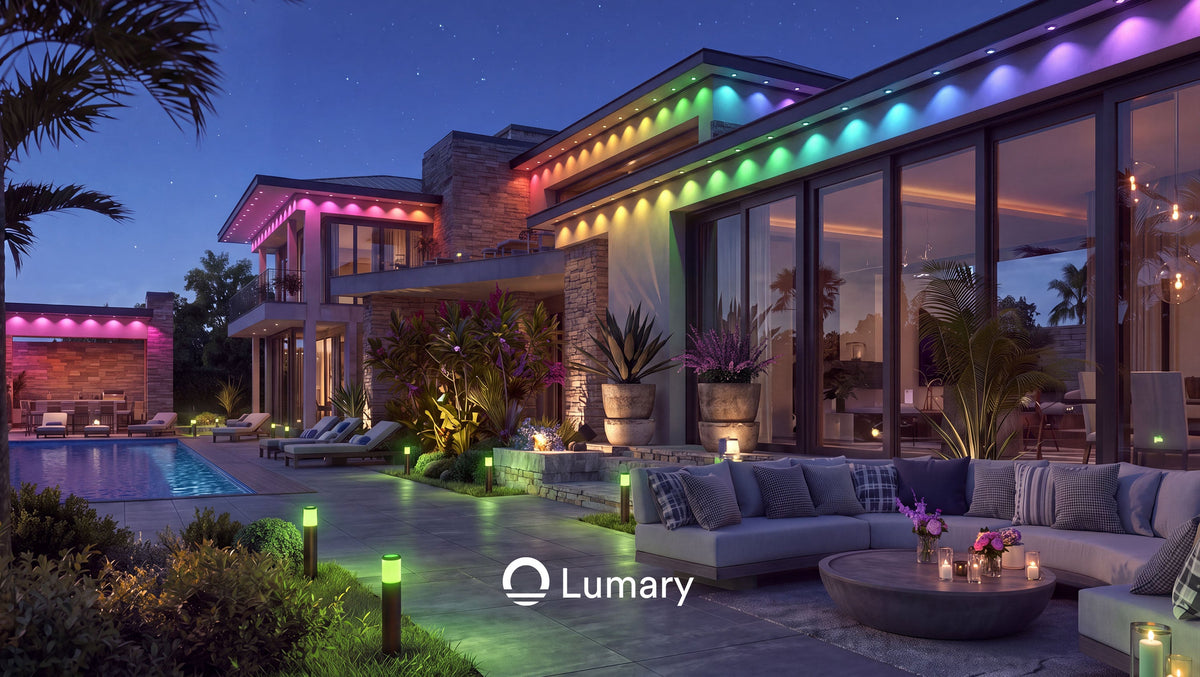

The Lumary Permanent Outdoor Lights 3 system is designed for homeowners who want a permanent eave-lighting installation with everyday adjustable white light, individually addressable color effects, smart-home control, and expansion for larger properties.

Its four standard lengths make the initial selection straightforward:

• 100 ft with 60 lights and 48W published power

• 150 ft with 90 lights and 72W published power

• 200 ft with 120 lights and 96W published power

• 300 ft with 180 lights and 144W published power

Each light is rated at 60 lumens, and the system provides RGBAI color with adjustable white light from 2200K to 6500K. Control options include the Lumary app, remote, control box, Amazon Alexa, Google Home, WLED, and Home Assistant. The system also provides 32-zone control, more than 150 preset scenes, and 28 music modes.

These features make one measured installation useful beyond holiday decorating. A homeowner can use low-level warm white for ordinary architectural lighting, divide a facade into zones, apply different colors to selected sections, and create animated effects for events. The measurement should therefore reflect the parts of the home that will be useful throughout the year, not only the most obvious Christmas-light route.

Lumary describes a patented slide-base mounting system intended to create a low-profile appearance and conceal wiring. Included mounting hardware supports a structured installation, but the visible soffit material does not automatically establish a secure attachment point. Vinyl, aluminum, wood, fiber cement, and open eaves can have different backing and fastening requirements.

The Polymeric Exterior Products Association’s soffit-installation guidance shows that soffit assemblies include panels, channels, fascia connections, and—in some configurations—additional backing. This is a useful reminder that the visible panel is only one part of the assembly. Confirm where Lumary’s hardware can be securely installed without blocking ventilation or damaging the exterior system.

Weather specifications are also relevant to route planning. Lumary publishes an IP67 rating for the light strings, control box, and adapter, along with an operating-temperature range of -4°F to 113°F. These values support outdoor use within the documented conditions, but they do not eliminate the need to follow the installation instructions for component placement, cable routing, connectors, and power equipment.

The strongest reason to measure carefully is the relationship between standard kits, expansion segments, and power. Lumary states that the system can expand up to 1,200 feet and that additional power supplies are required every 300 feet for consistent performance. A homeowner measuring a 340-foot route should not assume that one 300-foot kit plus extra lights is automatically a complete electrical plan. The additional 40 feet crosses the published power-supply interval and therefore needs a documented configuration with the appropriate supply and supported connection arrangement.

Similarly, an available 24.6-foot expansion segment does not mean that every measured shortfall should be solved by adding one. The selected base system, controller capacity, total light count, branch layout, and power arrangement must remain within the manufacturer’s current instructions. Measure first, draw the configuration second, and confirm the permitted system architecture before ordering.

The expandable Lumary roofline-lighting platform is a strong fit when the house has a measurable eave route, suitable mounting surfaces, an appropriate outdoor power location, and a layout compatible with the documented components. It is a weaker fit when the property lacks accessible eaves, the desired sections are separated by long unsupported gaps, property rules prohibit permanent mounting, or the installation would require improvised cable modifications.

Technical Specification Table

Specification	Lumary Permanent Outdoor Lights 3
Model variants	PO3A1 / PO3A2; PO3B1 / PO3B2; PO3C1 / PO3C2; PO3D1 / PO3D2
Housing colors	White / Black
Standard lengths	100 ft / 150 ft / 200 ft / 300 ft
Number of lights	60 / 90 / 120 / 180
Published power	48W / 72W / 96W / 144W
Light-string input	DC 36V, 1.33A / 2A / 2.66A / 4A
Power-adapter input	120V AC, 50/60Hz
Light output	60 lumens per light
Light technology	RGBAI + CW
White color-temperature range	2200K–6500K
Zones	Up to 32
Preset scenes	More than 150
Music modes	28
Control methods	Lumary app, remote, control box, Alexa, Google Home, WLED, Home Assistant
Weather rating	Light string: IP67; control box: IP67; adapter: IP67
Published operating range	-4°F to 113°F
Maximum published expansion	Up to 1,200 ft
Additional power requirement	Additional power supplies required every 300 ft
Expansion-segment length	24.6 ft, sold separately
Mounting design	Patented slide-base with included mounting hardware
Primary planning requirement	Measure illuminated runs, unlit transitions, power route, mounting surface, and elevation separately

How to Measure a Roofline Step by Step

1. Decide which rooflines should be illuminated

Start with photographs of every side of the house. Mark the roof edges you want to illuminate with one color and the edges you intend to leave dark with another.

For a street-facing design, the selected route might include:

• The garage eave

• The main first-floor eave

• Both rakes of the front gable

• A porch return

• A second-story eave

• One dormer

Do not include rear rooflines simply because they are part of the house. Include them only if they contribute to the intended backyard or whole-home design. This avoids buying footage for areas that will rarely be seen or used.

Think about daytime appearance as well. Permanent lights remain physically present when switched off. A clean route beneath consistent eaves generally looks more deliberate than a system that crosses random roof surfaces to reach every possible section.

Number the selected lines in installation order: A, B, C, D, and so forth. That order should begin near a practical power and controller location rather than at the most visually convenient corner.

2. Draw a simple elevation sketch

Your drawing does not need to be architectural. It needs to preserve the sequence of the route.

For each facade, sketch:

• Horizontal eaves

• Sloped gable rakes

• Short returns

• Dormers

• Inside and outside corners

• Changes between roof levels

• Downspouts and other obstructions

• The intended outlet, adapter, and controller locations

• Places where the cable must travel without illuminated coverage

Label each segment before measuring. This prevents repeated measurements and makes it easier to verify the arithmetic later.

Use separate line types for lit and unlit routes. For example, draw illuminated sections as solid lines and transitions as dashed lines. A 12-foot horizontal eave and a 12-foot unlit jump are not interchangeable simply because the measurements are identical.

3. Measure horizontal eaves from the ground

Horizontal eaves are usually the easiest sections to estimate safely. Possible methods include:

• Measuring the wall below the eave with a tape or laser

• Using a measuring wheel along the corresponding ground line

• Reading dimensions from construction drawings

• Measuring known facade features and scaling a straight-on photograph

• Using aerial imagery for a preliminary result

Measure from the planned starting point to the actual corner or transition—not simply from one exterior wall to another. Roof overhangs, bay windows, porch roofs, and garage projections can make the light path longer than the wall below it.

Aerial tools are useful for checking long horizontal dimensions, but do not treat them as installation-ready measurements. Google’s Earth documentation notes that its distance measurements do not account for elevation changes, and image perspective or roof overhang can introduce additional error. Use the result as one input, then cross-check it against a known dimension.

4. Measure sloped gable edges correctly

A common mistake is to measure the horizontal width of a gable and assume that number equals the two sloped sides. It does not.

If you can safely obtain the gable width and vertical rise, use the Pythagorean theorem. Divide the total width by two, then calculate one rake:

One rake = √[(half-width)² + rise²]

For example, suppose a symmetrical gable is 24 feet wide and rises 8 feet from the eave line to the peak:

Half-width = 24 ÷ 2 = 12 ft

One rake = √(12² + 8²)

One rake = √(144 + 64)

One rake = √208 ≈ 14.42 ft

Because the gable has two sides:

Total gable rakes = 14.42 × 2 ≈ 28.84 ft

The 24-foot facade width therefore corresponds to almost 29 feet of sloped lighting—not 24 feet.

If the two sides are not symmetrical, calculate or measure each one independently. Dormers, clipped gables, and offset peaks can produce different left and right rake lengths.

Roofing terminology can make the sketch easier to discuss with an installer. GAF’s guide to roof components distinguishes eaves, rakes, hips, ridges, valleys, and other common elements.

5. Measure every return and corner transition

Small segments create large errors when they are ignored repeatedly. Measure:

• Short eave returns at gable bases

• Porch corners

• Bay-window projections

• Garage bump-outs

• Recessed entries

• Transitions around columns

• Changes in soffit depth

• Routes around downspouts or structural obstructions

A house that appears to have a simple 60-foot front edge may contain several returns that bring the actual mounted path closer to 70 feet. Record each section individually rather than adding an arbitrary percentage at the end.

Corners should also be evaluated physically. A cable may need enough room to turn without pinching, twisting, crossing a sharp metal edge, or pulling a connector under tension. Follow the supplied installation instructions for bend, connector, and transition requirements.

6. Separate lit sections from unlit gaps

Permanent-light projects frequently include roof areas that should not contain visible light nodes:

• The vertical rise between first and second floors

• A route behind a downspout

• A gap between the main house and garage

• The distance from the controller to the first illuminated eave

• A jump between separated gables

• A concealed route through an attic, chase, or other approved area

• A section where the mounting surface is unsuitable

Measure these gaps, but record them in a separate column. Then determine whether Lumary provides an approved component or configuration for that transition.

Do not substitute a lighted segment when an unlit transition is needed without considering the visual result. Conversely, do not cut, splice, or insert generic wire merely because the exact gap length is inconvenient. Product-specific voltage, data, polarity, connector sealing, and power architecture matter.

Community installation discussions frequently show homeowners discovering that a map-based total did not account for gable pitch or the route needed to reach a separate roof level. These discussions are anecdotal, but they illustrate why a single total such as “about 190 feet” is not enough to define an installation.

7. Locate power before choosing the starting point

Mark every suitable outdoor receptacle on the sketch. Then evaluate:

• Whether the receptacle has working GFCI protection

• Whether it has an appropriate weatherproof cover or enclosure

• Where the adapter and control box can be placed

• Whether the cable can reach the first light without crossing a doorway or walkway

• Whether 2.4 GHz Wi-Fi reaches the intended controller location

• Whether the selected starting direction supports the rest of the route

The U.S. Consumer Product Safety Commission recommends properly tested GFCI protection for outdoor receptacles and warns against using damaged, improperly rated, or unsuitable cords outdoors.

If the project requires a new receptacle, branch-circuit work, changes to household wiring, or investigation of an ungrounded outlet, use a qualified electrician. Permanent-light measurements should incorporate the real power location rather than assuming an electrician will later place an outlet wherever the lighting route happens to end.

8. Plan power boundaries on long installations

Lumary publishes an additional-power-supply requirement every 300 feet and a maximum expansion length of 1,200 feet. Use those values as planning boundaries.

For an illustrative 520-foot design:

Number of 300-foot power intervals = Ceiling(520 ÷ 300)

Ceiling(1.73) = 2 intervals

That arithmetic indicates at least two powered intervals for preliminary planning. It does not determine the final connection arrangement, controller configuration, injection point, or branch layout. Those details must follow the current Lumary instructions.

Draw a line at each 300-foot boundary on the takeoff. If the boundary falls in the middle of a gable, above an inaccessible roof, or far from a suitable power location, revise the segment order before purchasing.

A 300-foot standard kit may be convenient for one continuous route, but two separated buildings should not automatically be treated as one string. A detached garage has its own cable path, power availability, weather exposure, network conditions, and transition constraints.

9. Evaluate the mounting surface

Measure the width and condition of the intended soffit or mounting plane in addition to its length. Check for:

• Solid wood

• Vinyl or aluminum soffit panels

• Open rafters

• Vented panels

• Uneven stucco

• Metal fascia

• Gutters or drip edges

• Existing fasteners

• Rot, looseness, corrosion, or water damage

• Adequate structural backing

• Clearance for the slide-base and cable

Do not cover ventilation openings or assume that a thin soffit panel provides the same holding strength as framing. PEPA’s installation materials show that nailing strips or other backing may be required within certain soffit assemblies. The correct attachment method depends on the actual construction and Lumary’s installation instructions.

If you cannot identify the mounting substrate, consult a siding, roofing, or exterior contractor before drilling. A precise linear measurement is not useful if the selected line cannot support the mounting system.

10. Add only a documented planning allowance

A small allowance can help accommodate minor measuring uncertainty and routing around corners, but it should not replace a real takeoff. Avoid a universal rule such as “always add 20%.” On a straight 100-foot ranch, 20% may purchase far more material than needed. On a complicated two-story facade, it may still fail to solve an inaccessible transition.

Instead, classify uncertainty by section:

• Confirmed straight measurement

• Estimated aerial measurement

• Calculated gable measurement

• Unverified corner

• Unlit transition awaiting product confirmation

• Section awaiting professional access

Then compare the verified total and uncertain sections with the available 100-, 150-, 200-, and 300-foot options. The ideal selection is not necessarily the kit with the smallest amount of unused length. It is the supported configuration that completes the planned route without an improvised electrical or structural exception.

Key Purchasing Criterion	Common Sign of a Poor-Quality Unit	How This Lumary Permanent Outdoor Lights 3 Addresses It	Long-Term Usage / Performance Impact
Standard length choices	Only one length is offered, forcing excessive waste or multiple unrelated kits	Offers 100-, 150-, 200-, and 300-ft configurations	Makes it easier to align the purchase with a measured roofline
Published light count	Footage is listed without showing the corresponding number of lights	Lists 60, 90, 120, and 180 lights for the four standard lengths	Helps buyers anticipate visual density and controller configuration
Expansion rules	Product claims expandability without stating a maximum	Publishes expansion up to 1,200 ft	Supports larger projects while defining a system boundary
Power-supply planning	Long runs are promoted without identifying power intervals	Requires additional power supplies every 300 ft	Prevents a large installation from being planned as one unlimited powered run
Expansion-segment information	No approved method exists for closing a measured length gap	Publishes 24.6-ft expansion segments sold separately	Provides a documented expansion increment, subject to system limits
Mounting system	Adhesive alone is presented as universally permanent	Uses a patented slide-base with included mounting hardware	Supports a cleaner permanent route when attached to suitable backing
Outdoor durability	Weather claims are vague or limited to only the light nodes	Publishes IP67 for lights, control box, and adapter	Reduces uncertainty across the main system components
Everyday white light	System is limited to saturated decorative colors	Provides 2200K–6500K adjustable white plus RGBAI color	Makes measured coverage useful for daily architectural lighting
Zone control	The entire roofline must display one uniform state	Supports up to 32 zones	Allows separate gables, eaves, and facade sections to behave differently
Control ecosystem	Operation depends on one proprietary control method	Supports app, remote, control box, Alexa, Google Home, WLED, and Home Assistant	Provides alternative control paths and automation options
Product-size clarity	Wattage is not tied to each standard length	Publishes 48W, 72W, 96W, and 144W by configuration	Supports power and energy planning before installation
Installation documentation	Product encourages field improvisation	Publishes mounting hardware, expansion limits, and power intervals	Helps the measured plan remain within a defined system architecture

Competitive Landscape

Permanent outdoor-lighting products use different physical architectures, so equal footage does not always mean equal installation flexibility.

Govee’s permanent outdoor-light systems are commonly sold in standard-length kits with connected light segments and product-specific extension rules. They compete strongly in app scenes, smart-home integration, and consumer DIY installation. When comparing a Govee configuration with Lumary, buyers should examine whether the exact model permits cutting, splicing, extension, or branching, rather than transferring assumptions from another generation or product family.

Philips Hue’s outdoor ecosystem follows a modular low-voltage approach using compatible power supplies, extension cables, and individual outdoor fixtures. It may suit a homeowner who wants isolated spotlights, wall lights, or path lights around a property, but it is not a direct substitute for a continuous permanent eave-light string. Roofline footage alone does not provide a useful comparison between those categories.

Professionally installed permanent-lighting brands often use custom track cut to the house, with pricing based on measured linear footage. This approach can provide close alignment with corners, gables, and housing color, while transferring high-access work to trained installers. The tradeoff is a higher initial project cost and dependence on the installer’s hardware, service, and control ecosystem.

Generic addressable-pixel systems offer substantial technical flexibility, including custom wire spacing, controllers, power injection, and show sequencing. They can appeal to advanced hobbyists, but the measurement must include voltage drop, data integrity, injection points, enclosures, connectors, wire gauge, and controller capacity. A simple footage number is even less sufficient for that category.

Seasonal Christmas-light strings are easier to change or remove when a measurement is imperfect. They may be clipped temporarily to gutters and roof edges, then adjusted each year. Permanent systems place a higher value on accurate measurement because the mounting bases, cable route, power location, and daytime appearance remain part of the building.

Lumary’s position combines standard consumer-kit lengths with a low-profile slide-base, broad smart control, adjustable white light, color effects, published expansion segments, a 300-foot additional-supply interval, and expansion up to 1,200 feet. It is more structured than a fully custom pixel build but more expandable than a single fixed seasonal string.

The best competitive choice therefore depends on the measurement result:

• A simple 90-foot front elevation may fit a 100-foot consumer kit.

• A 142-foot facade may align naturally with a 150-foot option.

• A 215-foot layout with a complex unlit transition requires more than choosing the next available kit size.

• A 380-foot whole-home route requires explicit power segmentation.

• An irregular historic home may be better suited to a custom professional track system.

• A rental or HOA-restricted property may be better served by removable seasonal lights.

Do not compare products solely by cost per foot. Compare the usable installed route, mounting method, control system, power boundaries, approved transitions, weather ratings, warranty, and whether the layout can be serviced later.

Application Scenarios

1. A One-Story Ranch With a Straight Front Eave

Consider a ranch house with a 64-foot front eave, a 22-foot garage return, and a 9-foot porch section:

64 + 22 + 9 = 95 ft

The visible illuminated route is approximately 95 feet. A 100-foot configuration appears suitable, but the homeowner must still check where the controller and first light begin, how corners are handled, and whether the final five feet can be managed according to the instructions.

Measure the 64-foot section from corner to corner beneath the actual soffit rather than relying on the house’s listed width. Include the garage projection and porch section only if the cable can follow a continuous supported path.

Mark the receptacle on the drawing. If it is near the garage, begin the route there and confirm that the system reaches the opposite end without stretching cables or placing equipment across the driveway.

The 100-foot Lumary permanent-light configuration includes 60 lights and has a published power rating of 48W. It can provide a continuous architectural line for this illustrative layout, with warm white for everyday use and color scenes for holidays.

This is the simplest measurement case, yet it still requires substrate verification. If the soffit is vinyl, determine where the slide-base can be supported rather than attaching blindly to the center of a flexible panel. Ground-level access on firm pavement may make the project suitable for an experienced DIYer, but the ladder should be moved instead of using sideways reach.

2. A Front Gable That Is Wider Than It Looks

Suppose the house has a 30-foot horizontal garage eave and a centered gable measuring 20 feet wide with a 7-foot rise.

For each gable side:

Half-width = 20 ÷ 2 = 10 ft

Rake = √(10² + 7²)

Rake = √149 ≈ 12.21 ft

Both rakes total:

12.21 × 2 = 24.42 ft

The illuminated total is:

30 + 24.42 = 54.42 ft

If the homeowner had used only the gable’s 20-foot width, the estimate would be short by approximately 4.42 feet before counting any transitions or returns.

The lesson is that horizontal map measurements understate sloped edges. Google Earth can help verify the garage’s horizontal length, but the gable must be measured or calculated using its actual slope. The route should also specify whether the lights travel continuously from the horizontal eave up one rake, over the peak, and down the other.

A 100-foot kit may provide more footage than this front-only project needs. The extra capacity could serve a porch or side return if the resulting configuration follows Lumary’s approved layout. Do not choose an unsupported field modification merely to make the kit end exactly at a corner.

3. A Two-Story House With Separate Upper and Lower Rooflines

Imagine a lower front eave measuring 72 feet, two lower gable rakes totaling 34 feet, and an upper eave measuring 46 feet:

72 + 34 + 46 = 152 ft of illuminated roofline

The total is only slightly above 150 feet, but the project also requires a transition from the lower level to the upper level. If that transition is 14 feet, it cannot be ignored merely because it will not contain visible lights.

A buyer should not automatically order the 200-foot kit based on 152 + 14 = 166 feet. First determine whether the transition uses an approved extension, how it connects, and where it can be routed. The physical sequence may matter more than the arithmetic.

The upper eave also creates an access question. A 46-foot section may require numerous ladder resets at a substantial height. OSHA advises stable footing, three-point contact, remaining within the rails, and maintaining clearance from power lines.

A professional installation may be the better choice even when the homeowner completes the measurement and purchases the product. The homeowner can provide a labeled diagram, verified section lengths, preferred controller location, and scene-zone plan. The installer can verify high-level dimensions and mounting conditions before final placement.

The 200-foot Lumary smart eave-light system may be appropriate if the documented transitions and total route fit the manufacturer’s configuration. The final decision should follow a component-level plan rather than rounding the house to “about 150 feet.”

4. A Main House and Detached Garage Totaling 360 Feet

Suppose the main house requires 240 feet and a detached garage requires 120 feet:

240 + 120 = 360 ft

This property is below Lumary’s published 1,200-foot expansion ceiling but crosses one 300-foot power interval. The preliminary supply calculation is:

Ceiling(360 ÷ 300) = 2 powered intervals

The two buildings also have a driveway between them. Do not include the driveway width as if a light string can simply cross it. Draw the main house and garage as separate physical zones, measure each structure independently, and identify an appropriate power location for each.

The homeowner may coordinate the buildings through compatible smart controls, but visual synchronization does not necessarily require one continuous physical cable. The exact controller and power arrangement must follow Lumary’s instructions.

A practical takeoff would include:

• Main-house illuminated sections: 240 ft

• Garage illuminated sections: 120 ft

• Inter-building distance: recorded as a constraint, not assumed as a cable route

• Outdoor receptacle at each building

• Network availability at each controller location

• Power boundary and supply placement

• Separate mounting-surface notes

This scenario demonstrates why a total-footage number can be misleading. “360 feet” describes the combined visible length but does not describe a valid wiring plan.

5. A Complex Home With Dormers, Returns, and Uneven Soffits

Consider a large facade with a 90-foot lower eave, three dormers requiring 18 feet each, two gables totaling 58 feet, and several short returns totaling 16 feet:

90 + (3 × 18) + 58 + 16 = 218 ft

The homeowner initially assumes that a 300-foot kit will provide ample material. However, the dormers are separated from the main eave, one gable lacks a continuous soffit, and the preferred outlet is at the back of the house.

Before selecting the kit, the homeowner should create a section schedule:

Section	Illuminated Length	Transition	Access	Mounting Condition
Lower eave	90 ft	Continuous	First story	Flat soffit
Dormer 1	18 ft	Separate gap	Upper roof	Professional access
Dormer 2	18 ft	Separate gap	Upper roof	Professional access
Dormer 3	18 ft	Separate gap	Upper roof	Professional access
Gables	58 ft	Multiple corners	Mixed height	One open-eave section
Returns	16 ft	Short corners	First story	Mixed substrate

The measurement reveals that the primary problem is not total footage. It is the number of separate sections, the lack of a suitable surface on one gable, and high access to the dormers.

A professional installer should verify whether the desired route can be completed using Lumary’s approved extensions and mounting system. The homeowner may decide to omit the dormers and illuminate only the lower eave and major gables. A shorter, continuous installation can look more intentional than a larger design connected by awkward visible routes.

Editorial Assessment

The correct roofline measurement is a route plan, not one number. It identifies every lit eave, rake, return, and gable; records unlit transitions separately; locates the power source and controller; notes mounting materials and access conditions; and maps the installation in the order the system must follow.

For straightforward homes, begin with a ground-level sketch and measure every straight section. For gables, measure the sloped rakes or calculate them from width and rise. Use aerial imagery as a cross-check for horizontal dimensions, not as the sole measurement for sloped or elevated sections. Label uncertainty rather than hiding it inside a large arbitrary allowance.

Lumary’s standard 100-, 150-, 200-, and 300-foot options simplify selection when the route is known. The 24.6-foot expansion segments, 1,200-foot maximum, and additional-power-supply requirement every 300 feet support larger installations, but those specifications do not turn every total-footage calculation into an approved configuration. Confirm the exact segment, controller, branch, extension, and power arrangement before ordering.

The mounting surface deserves the same attention as the length. A soffit may contain ventilation openings, flexible panels, concealed backing, channels, and transitions. Verify a sound attachment method before drilling. If the project requires new outdoor power, unverified structural attachment, or repeated work at a second-story roofline, divide the job among appropriate professionals.

Who Should Buy This Product: The Lumary Permanent Outdoor Lights 3 is best for homeowners who can define a continuous, supported eave-lighting route; match that route to the documented lengths and expansion architecture; provide suitable outdoor power; and use either safe first-story access or professional installation. Buyers with inaccessible gables, unsupported soffits, long inter-building gaps, restrictive property rules, or unclear power routes should resolve those constraints before purchasing based on footage alone.

Frequently Asked Questions

Q1. Should I measure the house width or the actual roofline?

Measure the actual path where the lights will be mounted. House width can provide a preliminary estimate for one horizontal eave, but it excludes gable slopes, returns, porch projections, dormers, corners, and transitions between roof levels.

For example, a house may be 50 feet wide while its selected front-lighting route includes a 50-foot eave, two 12-foot gable rakes, and two 4-foot returns:

50 + 12 + 12 + 4 + 4 = 82 ft

Buying from the 50-foot house width would create a significant shortfall. Draw and measure every selected segment individually.

Q2. How much extra length should I add to my measurement?

Do not apply a universal percentage without first identifying the source of uncertainty. Add confirmed routes, corners, and approved transitions directly to the takeoff. Then note which dimensions are estimates.

A small planning allowance may be reasonable for normal measurement tolerance, but buying excessive footage does not solve an incompatible transition, unsupported mounting surface, or incorrect power architecture. Compare the measured design with Lumary’s standard kit lengths and 24.6-foot expansion segments, then confirm how unused or added sections may be handled according to the installation guide.

If the measurement falls only slightly above a standard length, do not assume that cutting, splicing, or removing part of the system is allowed. Verify the current instructions before ordering.

Q3. Can I measure my roofline with Google Earth or Google Maps?

Aerial imagery can provide a useful preliminary measurement for horizontal roof edges and building footprints. Google Earth includes measurement tools for distance and area. However, Google states that web and mobile distance results do not account for elevation changes.

That limitation is important for gable rakes, hips, and other sloped edges. An overhead measurement captures the horizontal projection, not necessarily the true sloped mounting length. Image date, perspective, trees, overhangs, and unclear roof boundaries can also affect accuracy.

Use aerial results to prepare the initial sketch, then cross-check them against known building dimensions, ground measurements, construction drawings, photographs, or a professional field measurement.

Q4. Do I need to climb onto the roof to measure it accurately?

No. Avoid climbing onto the roof solely to obtain a lighting estimate. Many rooflines can be measured with a combination of ground-based tools, known dimensions, photographs, plans, aerial imagery, and basic geometry.

When ladder use is unavoidable for an accessible first-story section, choose equipment appropriate for the height and terrain, inspect it before use, maintain three-point contact, avoid sideways reaching, and keep well away from power lines. Move the ladder instead of stretching to complete a longer section. OSHA’s extension-ladder fact sheet recommends a 4:1 setup angle and at least 10 feet of clearance from electrical lines.

Use a professional for tall gables, sloped ground, wet or icy surfaces, roof access, or locations near electrical conductors.

Q5. How do I choose between the 100-, 150-, 200-, and 300-foot versions?

First total the illuminated sections. Then verify the approved transitions, route to power, controller position, mounting surfaces, and installation sequence. Select the standard configuration that can reproduce the complete supported layout—not simply the one closest to the visible footage.

As an initial guide:

• A verified 86-foot continuous route may fit the 100-foot version.

• A 138-foot route may fit the 150-foot version.

• A 176-foot route plus supported transitions may point toward the 200-foot version.

• A 250-foot whole-facade route may fit the 300-foot version.

• A project exceeding 300 feet requires additional power-supply planning.

• A multi-building project should be divided into physical zones before choosing components.

The Lumary Permanent Outdoor Lights 3 product page should be checked again when ordering because available variants, accessories, specifications, and installation requirements can change. Use the measurement to narrow the options, then verify the final component-level configuration against the current guide.
