Retaining wall lights work best when they do more than decorate the wall itself. Positioned correctly, they can define the edge of a patio, illuminate changes in elevation, reveal steps, highlight stone or brick textures, and create low-level ambient lighting around outdoor seating without producing the glare of an exposed floodlight.
The most effective layout usually places the fixtures beneath a wall cap or on the vertical face of the wall, with the light directed downward or slightly outward. This creates a controlled pool of light across the wall and nearby ground. Aiming the beam toward the walking surface helps people recognize edges and elevation changes, while keeping the light source below eye level reduces discomfort for guests seated nearby.
For many retaining walls, a starting spacing of approximately 6 to 7 feet between fixtures produces a balanced architectural rhythm. Professional hardscape-lighting guidance commonly uses this range as an initial layout, while other installation instructions suggest approximately 5 to 8 feet depending on the fixture, wall, and desired distribution.
Spacing is not a universal rule. The correct distance depends on:
-
Fixture brightness and beam shape
-
Mounting height
-
Wall color and texture
-
Distance from the wall to the patio or walkway
-
Whether you want separate pools of light or continuous coverage
-
Nearby steps, corners, doors, and seating
-
The brightness of other outdoor fixtures
-
The final aiming angle

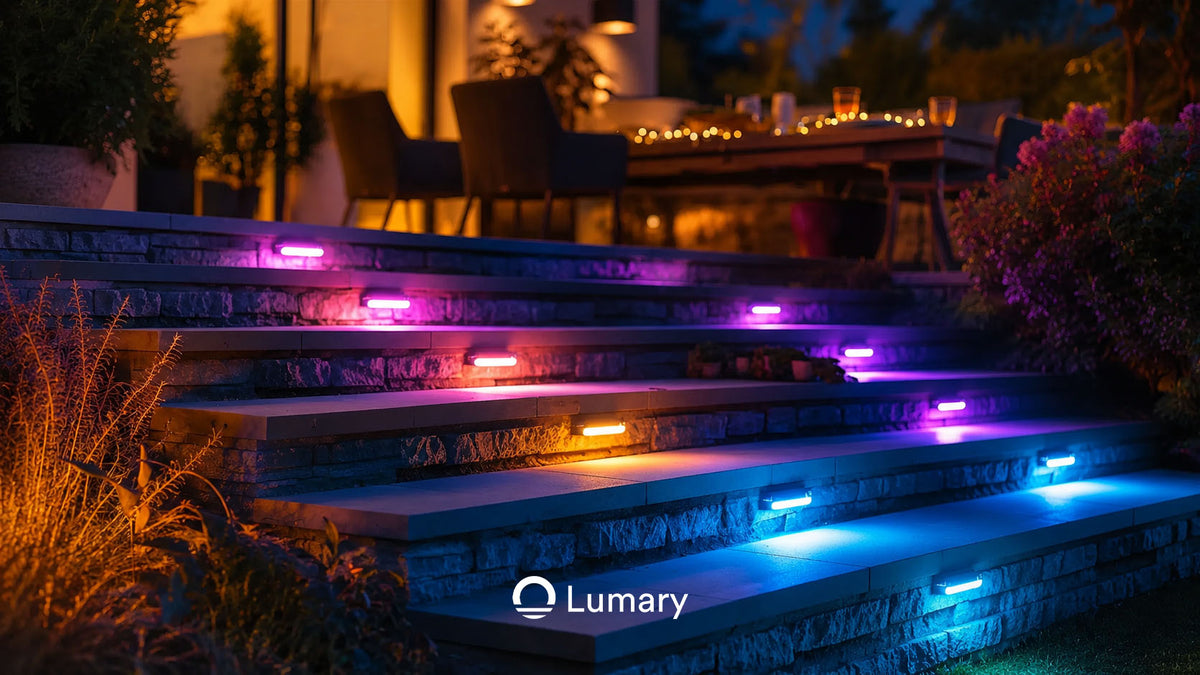

The Lumary Smart Retaining Wall Light is a seven-inch, 3W low-voltage fixture sold as an eight-light set. Each light produces approximately 170 lumens according to the current specification table, supports adjustable 2200K–6500K white light and 16 million RGB colors, and offers 1%–100% dimming. The aluminum fixture has an IP65 rating and a 270-degree adjustable lighting direction.
An eight-light set can cover a meaningful section of backyard hardscape. At 6-foot center-to-center spacing, the distance from the first light to the eighth light is:
7 gaps × 6 ft = 42 ft
At 7-foot spacing:
7 gaps × 7 ft = 49 ft
This does not mean the total wall must be exactly 42 or 49 feet. You may leave half-spacing margins near the ends or place fixtures according to columns, steps, corners, or wall sections. On a straight wall, an eight-light set can often support an illuminated composition of approximately 45 to 55 feet once the end margins are included.
The first and last fixtures should not automatically be placed at the extreme ends of the wall. If the first light is too close to a corner, its pool of light can appear compressed. If it is too far from the end, the wall may look unfinished. Begin with approximately half of the regular fixture spacing as an edge margin, then adjust for the wall geometry.
For example, a 48-foot wall with eight lights can be planned by subtracting two 3-foot end margins:
48 ft − 3 ft − 3 ft = 42 ft
Seven spaces remain between eight fixtures:
42 ft ÷ 7 = 6 ft
This creates a symmetrical six-foot center-to-center layout with three-foot margins at both ends.
Do not finalize spacing only in daylight. Mark the proposed fixture centers with painter’s tape, temporary markers, or removable mock-up lights. Then evaluate the wall after dark from the patio, door, walkway, seating area, and neighboring property line. Hardscape-lighting instructions commonly recommend making final spacing and aiming decisions at night because beam overlap, glare, and surface reflections are difficult to judge during the day.
A dark stone wall absorbs more light than pale concrete. A rough wall creates stronger shadows and texture than a smooth surface. A low 18-inch sitting wall can require a different aiming angle than a four-foot retaining wall. A fixture that looks appropriately bright when viewed while standing may feel distracting when someone is seated directly across from it.
The goal is not to make every inch equally bright. A subtle pattern of light and shadow often looks more natural than a continuous strip of maximum illumination. Community discussions about retaining-wall lighting repeatedly make the same practical point: more fixtures are not always better, and the final visual effect should be judged against the actual wall rather than a generic spacing chart.
Retaining wall lights can serve several functions around a backyard or patio:
-
Mark the boundary between the patio and a raised planting bed
-
Illuminate a walkway beside a wall
-
Reveal a drop, slope, or change in grade
-
Add low-level lighting to a sitting wall
-
Highlight stone, brick, timber, or textured concrete
-
Provide ambient light around an outdoor kitchen
-
Define steps and stair landings
-
Accent a fire-pit surround
-
Connect separate backyard zones visually
-
Add temporary color for parties and holidays
These functions should be prioritized before color or effects. Everyday outdoor lighting usually works best in warm white at a restrained brightness. Colored scenes can remain an event layer rather than the default setting.
DarkSky’s principles for responsible outdoor lighting recommend using light only where and when it is needed, keeping output no brighter than necessary, aiming it carefully, using controls, and selecting warmer colors where possible. Its residential guidance recommends 2700K or lower as the most night-friendly choice, with careful shielding and limited operating time when cooler light is necessary.
The Lumary fixture’s 2200K setting is therefore especially useful for ordinary patio evenings. A low-output 2200K–2700K scene can reveal the wall and nearby ground without giving the backyard the appearance of a commercial parking area. Brighter neutral or cool-white settings can be reserved for cleanup, maintenance, or short periods when more visibility is helpful.
Power planning is as important as fixture placement. The Lumary retaining wall lights require a compatible 12–24V AC/DC low-voltage connection, and the power supply is not included. The complete eight-light set has a nominal fixture load of:
8 lights × 3W = 24W
A transformer should have capacity above the connected fixture load. A commonly used landscape-lighting planning method is to keep the connected load at or below approximately 80% of transformer capacity. Under that method:
24W ÷ 0.80 = 30W
A compatible transformer rated for at least 30W would satisfy the arithmetic for the eight 3W fixtures, but the final selection must also account for the transformer’s approved output, cable length, voltage drop, future additions, environmental rating, and Lumary’s installation requirements.
The transformer converts household power to the low voltage used by the landscape-lighting system. Its primary connection still involves 120V household electricity. Use a suitable GFCI-protected outdoor receptacle, follow the transformer’s mounting instructions, and hire a qualified electrician when a new receptacle, branch circuit, or line-voltage connection is required. The Consumer Product Safety Commission recommends GFCI protection outdoors and advises homeowners to use a licensed electrician for household electrical work.
A strong plan therefore combines four layers:
-
The physical wall layout
-
The nighttime light pattern
-
The low-voltage cable and transformer design
-
The everyday control schedule
When those layers are planned together, retaining wall lights can make a backyard feel more usable and visually organized without making it look excessively bright.
Product Recommendation Analysis
The Lumary Smart Retaining Wall Light is an eight-fixture smart hardscape-lighting set designed for retaining walls, outdoor steps, fire-pit surrounds, sitting walls, patio edges, and related low-voltage landscape applications.
Each fixture measures approximately seven inches long, 1.25 inches wide, and 1.08 inches deep. The slim linear shape allows it to sit beneath a wall cap, project from a wall surface, or integrate into an appropriate hardscape detail without becoming the dominant daytime feature.
The aluminum housing and brown-toned finish are intended to visually blend with common stone, block, brick, timber, and earth-toned hardscape materials. This matters because retaining wall lights remain visible during the day. A successful installation should look intentional when the lights are off as well as when they are on.
Each fixture consumes 3W and produces approximately 170 lumens according to the current product specifications. Eight fixtures therefore create a nominal 24W lighting load. That output is better suited to localized wall, step, and patio-edge illumination than to broad-area floodlighting.
The Lumary low-voltage retaining wall lights accept a 12–24V AC/DC low-voltage supply, although the transformer is sold separately. This gives the homeowner or installer flexibility to select a transformer appropriate for the complete landscape-lighting plan. It also means the system is not complete until the transformer, cable, connections, outlet, and routing have been designed.
If the eight-light set will be the only load, the nominal fixture total is 24W. If two sets are used:
16 lights × 3W = 48W
Applying an illustrative 80% loading target gives:
48W ÷ 0.80 = 60W transformer capacity
For three sets:
24 lights × 3W = 72W
72W ÷ 0.80 = 90W transformer capacity
These calculations establish preliminary capacity only. Long cable routes can create voltage drop, and transformers differ in output taps, controls, environmental ratings, and compatibility. Follow the product manual and transformer instructions rather than selecting solely by wattage.
The most distinctive product feature is the 270-degree adjustable direction. Traditional fixed hardscape lights produce one predetermined beam. The Lumary fixture can be aimed closer to the wall for texture and grazing, directed farther outward to illuminate the patio edge, or adjusted between those positions.
This adjustability is useful during commissioning. The fixtures can be installed with consistent spacing, then individually aimed after dark. A light beside a step can be directed farther toward the walking surface, while a fixture behind a seating area can be aimed closer to the wall to reduce glare.
The adjustable Lumary hardscape lights support 2200K–6500K white light, 16 million colors, and 1%–100% brightness. This allows one installation to serve several roles:
-
Low-brightness 2200K for ordinary evenings
-
Warm white around a dining patio
-
Neutral white during cleanup or maintenance
-
Seasonal colors for holidays
-
Team or party colors for gatherings
-
Music-reactive effects for selected events
For everyday use, restraint is usually more attractive than maximum brightness. A retaining wall should appear gently illuminated, not covered by eight competing hotspots. Begin at a low brightness setting and raise it only until the wall edge and nearby surface become comfortably visible.
Connectivity uses Bluetooth mesh, allowing multiple fixtures to participate in group control. The product supports the Lumary app and a physical remote. Alexa, Google Assistant, Wi-Fi remote access, and app scheduling require a compatible Lumary hub according to the current product description. That hub dependency should be considered before purchase if remote operation away from the property is important.
The system includes eight preset scenes as well as DIY colors and music synchronization. Those features expand the product’s entertainment value, but the most important controls for a patio installation are brightness, white color temperature, grouping, and timing.
A practical everyday schedule might turn the wall lights on near sunset, keep them at a moderate warm-white level during active patio hours, reduce brightness later in the evening, and turn them off when the space is no longer in use. DOE exterior-lighting guidance notes that scheduled dimming and centralized controls can reduce output during low-use periods while maintaining uniform lighting behavior.
The IP65 rating indicates resistance to dust and water exposure under defined conditions, but it does not eliminate the need for proper cable routing, compatible waterproof connections, drainage awareness, or correct transformer placement. Do not place connectors in standing water or assume that every hidden location behind a wall is dry.
The strongest use case is a new or accessible retaining-wall project where the cable can be routed before capstones are permanently secured. The system can also work in an existing wall, but retrofitting may require lifting capstones, cutting a cable channel, drilling masonry, or finding another manufacturer-approved mounting approach. A landscape professional may be appropriate when disturbing the wall could affect drainage, waterproofing, adhesive, structural stability, or finished stonework.
Technical Specification Table
| Specification | Lumary Smart Retaining Wall Light |
|---|---|
| Model | L-RWL7A1 |
| Pack size | 8 fixtures |
| Fixture type | Smart low-voltage retaining wall, step, and hardscape light |
| Fixture power | 3W each |
| Nominal eight-light load | 24W |
| Published brightness | Approximately 170 lumens per fixture |
| Supply requirement | Compatible 12–24V AC/DC low-voltage power |
| Power supply | Sold separately |
| Light color | RGBCW |
| White color-temperature range | 2200K–6500K |
| Color capability | 16 million RGB colors |
| Dimming range | 1%–100% |
| Housing material | Aluminum |
| Published ingress rating | IP65 |
| Fixture dimensions | Approximately 1.08 × 1.25 × 7 inches |
| Adjustable direction | Up to 270° |
| Connectivity | Bluetooth mesh; Wi-Fi functions through a compatible hub |
| Direct controls | Lumary app and remote |
| Voice control | Alexa and Google Assistant with compatible hub |
| Group control | Yes |
| App scheduling | Yes; hub required for specified remote functions |
| Music synchronization | Yes |
| Preset scenes | 8 |
| Typical applications | Retaining walls, patio edges, sitting walls, steps, fire-pit surrounds, outdoor kitchens |
| Installation methods | Screw-mounted or manufacturer-described installation without the baffle, depending on the application |
| Important purchasing note | Transformer, cable plan, compatible connections, and hub are separate considerations |
How to Plan Retaining Wall Lights Around a Backyard or Patio
Start with the purpose of each illuminated section. Do not place lights at fixed intervals until you know what the wall is supposed to accomplish after dark.
| Lighting Purpose | Preferred Result | Placement Priority |
|---|---|---|
| Patio ambience | Soft pools of warm light | Even rhythm and low glare |
| Walkway guidance | Visible wall edge and walking surface | Corners, transitions, and approach routes |
| Step visibility | Clearly recognizable risers and landings | Every hazardous elevation change |
| Wall texture | Controlled shadows across stone or brick | Close-to-wall aiming |
| Outdoor dining | Warm, dimmable background illumination | Keep direct light out of seated eye lines |
| Fire-pit surround | Visible edge without competing with the fire | Low output and warm color |
| Holiday decoration | Coordinated color across architectural sections | Group control and scenes |
| Property boundary | Subtle definition without light trespass | Careful aiming and low brightness |
Next, measure the illuminated wall sections. Record each straight run independently rather than combining the entire backyard into one number. Mark corners, stair openings, columns, gates, planting interruptions, and changes in wall height.
A simple plan may look like this:
| Wall Section | Length | Primary Function | Initial Spacing |
|---|---|---|---|
| Main patio wall | 28 ft | Seating ambience | 6–7 ft |
| Step wall | 8 ft | Elevation visibility | Placement based on steps |
| Garden wall | 14 ft | Texture and border | 6–7 ft |
| Fire-pit wall | 12 ft | Low ambient light | Wider spacing and lower brightness |
Do not force the same spacing across all four sections. The step wall should be designed around the stair geometry. The fire-pit wall may need fewer, dimmer fixtures. The main patio wall benefits from a consistent rhythm, while the garden wall can tolerate stronger pools of light and shadow.
For a straight wall, estimate fixture count using:
Approximate fixture count = Wall length ÷ desired spacing
Then round and adjust for end margins.
For a 30-foot wall at approximately 6-foot spacing:
30 ÷ 6 = 5
Five fixtures create four center-to-center gaps. If five fixtures are used with three-foot margins at both ends:
30 ft − 6 ft of total end margins = 24 ft
24 ft ÷ 4 gaps = 6 ft spacing
For a 40-foot wall with six fixtures and 3.5-foot margins:
40 − 7 = 33 ft
33 ÷ 5 gaps = 6.6 ft spacing
This produces an even layout without placing the end fixtures directly against corners.
Uniform spacing is visually useful, but architecture should take priority. If a perfectly calculated fixture lands behind a chair, directly beneath a downspout, across a construction joint, or beside a doorway where glare becomes noticeable, shift the composition. Small symmetrical adjustments usually look better than rigidly following a formula.
Mounting height changes the effect. A fixture beneath the top cap of a low sitting wall creates a narrow wash close to the base. The same fixture mounted higher on a tall retaining wall can illuminate more surface and cast a longer pattern onto the ground. Adjustable aiming helps, but it cannot fully compensate for unsuitable mounting height.
Before permanent installation, create a nighttime mock-up. Temporary positioning can reveal:
-
Whether fixture spacing is too tight
-
Whether the first and last lights need wider margins
-
Whether the wall creates harsh reflections
-
Whether a beam shines into seated guests’ eyes
-
Whether stairs and corners remain visible
-
Whether neighboring windows receive unwanted light
-
Whether warm or cool settings change the apparent brightness
-
Whether nearby path lights make some wall fixtures unnecessary
A common starting point of 6 to 7 feet is useful, but it should remain adjustable. VOLT’s hardscape installation guide recommends measuring and marking fixture positions before disturbing capstones, while Kichler describes hardscape lights as fixtures normally placed beneath a wall’s top cap and preferably planned before the cap is installed.
Once spacing is established, plan the power system. Locate the transformer close enough to a suitable GFCI-protected receptacle and in a position allowed by its installation instructions. It should remain accessible for testing, programming, resetting, and future service.
Map the low-voltage cable from the transformer to the first fixture and then through each lighting section. Avoid routes where the cable could be cut by edging tools, crushed by capstones, exposed to sharp masonry, or trapped in areas that collect water.
Retaining walls also manage soil and drainage. Do not create cable penetrations that compromise drainage, waterproofing, geogrid, structural components, or the wall manufacturer’s assembly instructions. If the wall retains a significant load or includes engineered reinforcement, consult the wall contractor before drilling, cutting, or removing blocks.
When installing in a segmental block wall, hardscape fixtures are commonly positioned beneath the capstone, with a protected cable route leading behind the wall. Waterproof low-voltage connections are then placed according to the lighting and connector instructions. This method is easiest during construction, before the final cap adhesive is applied.
For an existing wall, determine whether the capstones can be safely lifted and reset. Never assume that a visible joint can be opened without affecting the wall finish or waterproofing. A landscape or masonry professional may provide a cleaner result than trial-and-error cutting.
The power calculation begins with connected wattage:
Number of fixtures × watts per fixture = Total fixture load
| Number of Lumary Fixtures | Nominal Fixture Load | Illustrative Minimum Transformer Capacity at 80% Loading |
|---|---|---|
| 8 | 24W | 30W |
| 16 | 48W | 60W |
| 24 | 72W | 90W |
| 32 | 96W | 120W |
These are planning figures, not model-specific transformer recommendations. The transformer must provide compatible 12–24V AC/DC output, support the selected cable arrangement, and comply with the Lumary and transformer instructions.
Cable distance matters because voltage decreases along a conductor as current travels through resistance. Long runs, undersized cable, high total load, and poor connections can reduce voltage at the farthest fixtures. Symptoms may include lower brightness, unstable color, inconsistent startup, or different behavior between the beginning and end of the run.
Do not solve a voltage-drop problem simply by selecting an arbitrary higher transformer voltage or combining outputs. Use the appropriate cable gauge, transformer tap, wiring topology, and connection method specified for the system. For a long or multi-zone backyard, ask a landscape-lighting professional to calculate load and voltage drop.
Finally, commission the system after dark:
-
Set every fixture to the same warm-white color.
-
Reduce all fixtures to a low brightness.
-
Aim each light toward its intended surface.
-
Walk the patio and paths from both directions.
-
Sit in every normal seating position and check glare.
-
Increase brightness only where additional visibility is needed.
-
Confirm grouping and control response.
-
Save an everyday scene.
-
Create a separate event or holiday scene.
-
Set an automatic shutoff time.
DarkSky guidance recommends useful, targeted, low-level, controlled, and warm-colored outdoor lighting. A carefully commissioned retaining-wall system can follow those principles by using downward aiming, 2200K–2700K white, dimming, and schedules.
| Key Purchasing Criterion | Common Sign of a Poor-Quality Unit | How This Lumary Smart Retaining Wall Light Addresses It | Long-Term Usage / Performance Impact |
|---|---|---|---|
| Low-voltage compatibility | Voltage requirements are unclear | Publishes 12–24V AC/DC compatibility | Supports integration into a planned landscape-lighting system |
| Transformer planning | Product appears complete but omits power requirements | Clearly states that the transformer is sold separately | Encourages correct load and cable planning before installation |
| Fixture efficiency | High wattage is required for localized wall lighting | Uses 3W per fixture | Keeps an eight-light installation to a nominal 24W |
| Aiming flexibility | Fixed beam cannot adapt to wall height or seating | Provides up to 270° adjustment | Allows nighttime tuning for texture, ground coverage, and glare |
| White-light range | Only one cool white is available | Offers 2200K–6500K tunable white | Supports warm everyday ambience and brighter temporary visibility |
| Brightness control | Fixture runs only at full output | Provides 1%–100% dimming | Helps prevent overlighting and glare |
| Color options | Decorative use requires separate RGB fixtures | Includes 16 million colors and preset scenes | Lets one installation support daily and event lighting |
| Multi-fixture networking | Every light must be adjusted separately | Uses Bluetooth mesh and group control | Simplifies coordinated changes across a wall |
| Control redundancy | System depends on one cloud or voice platform | Supports app and remote, with hub-enabled voice and remote functions | Maintains basic control even when voice operation is unnecessary |
| Outdoor construction | Material and ingress rating are omitted | Uses an aluminum housing with a published IP65 rating | Improves confidence for exposed hardscape applications |
| Physical integration | Bulky fixture dominates the wall | Uses a seven-inch low-profile linear form | Produces a cleaner daytime architectural appearance |
| Installation flexibility | Fixture supports only one mounting orientation | Supports screw installation and adjustable aiming | Fits retaining walls, steps, fire-pit surrounds, and patio features |
| Scheduling | Lights depend on manual nightly operation | Supports timing and remote functions with a compatible hub | Reduces unnecessary late-night operation |
| Serviceability | Components must be permanently buried or sealed away | Can be planned with accessible transformer and connection points | Simplifies troubleshooting and future replacement |
Competitive Landscape
Hardscape lighting ranges from inexpensive solar wall lights to professionally installed low-voltage architectural systems. The categories may appear similar online, but they differ in brightness consistency, wiring, controls, service life, aiming, and installation method.
Solar retaining wall lights are the simplest category. They avoid transformer and cable installation, making them attractive for finished walls or rental properties. Their output depends on solar exposure, battery condition, season, panel orientation, and weather. A shaded wall beneath trees or beside a north-facing fence may not receive enough sunlight for reliable nightly performance.
Solar models can work for decorative markers, but wired low-voltage lights are generally more predictable when consistent brightness and scheduled operation matter. The Lumary smart retaining wall system requires more initial planning but provides controlled brightness, tunable white, color effects, grouping, and transformer-powered operation.
Traditional 12V hardscape lights from established landscape-lighting manufacturers emphasize durable construction, warm white light, professional transformers, and serviceable installation. Kichler’s hardscape-lighting range is designed for retaining walls, outdoor kitchens, and steps, with adjustable positioning that changes how far the light reaches.
Kichler is relevant for buyers who prioritize a conventional professional landscape ecosystem and coordinated transformers, cable, and fixtures. Lumary differentiates itself through integrated RGBCW color, adjustable 2200K–6500K white, app control, Bluetooth mesh, scenes, music synchronization, and hub-enabled voice operation.
VOLT offers a broad professional and DIY landscape-lighting system with hardscape fixtures, transformers, connectors, cable, and detailed installation education. Its guidance commonly uses 6–7-foot hardscape spacing and recommends keeping transformer load within approximately 80% of capacity. VOLT may appeal to buyers who want a traditional landscape-lighting system with extensive component choices and installer-oriented support.
WAC Lighting offers architectural hardscape and masonry fixtures, including white-light and color-capable product families. Some WAC hardscape luminaires emphasize quick connections, adjustable settings, multiple mounting orientations, and integration with a broader landscape-lighting platform. This category is appropriate for professionally specified projects where fixture photometrics, finish, transformer architecture, and coordinated control are selected as a complete design.
Lumary’s position is between basic decorative wall lights and a fully specified professional architectural system. The product offers a comparatively accessible eight-light package with smart color and white-light control, but the transformer and cable infrastructure still require real landscape-lighting planning.
Another alternative is continuous linear lighting beneath a wall cap or bench. A concealed LED tape or rope produces an unbroken line rather than separate pools of light. It can look modern beneath an outdoor kitchen counter or seating ledge, but it may flatten the wall texture and requires careful weatherproofing, channel design, heat management, drainage, and power planning.
Individual retaining wall lights create a more traditional rhythm. Their pools of light reveal stone texture and allow dark space between fixtures. Adjustable fixtures also make it easier to direct more light toward a step or path while keeping other areas subdued.
The right category depends on the desired nighttime image:
-
Choose solar markers for minimal installation and modest expectations.
-
Choose traditional hardscape lights for warm, dependable architectural lighting.
-
Choose continuous linear lighting for an uninterrupted modern glow.
-
Choose smart RGBCW fixtures for adjustable everyday white light plus event colors.
-
Choose a professional system when the wall is engineered, the project is large, or precise photometric performance is required.
Application Scenarios
1. A Straight Retaining Wall Along a Patio
Consider a 48-foot block retaining wall beside a rectangular patio. The wall is approximately three feet high and has a continuous capstone. The owner wants warm everyday lighting without making the dining area excessively bright.
Eight fixtures can be arranged with three-foot margins at each end and six-foot spacing:
48 − 6 ft of total margins = 42 ft
42 ÷ 7 spaces = 6 ft
This is a strong initial layout for the eight-light set. Before removing capstones, the installer marks all eight centers and temporarily tests the visual rhythm after dark.
The fixtures are mounted beneath the cap and aimed partly down the wall rather than directly across the patio. The eight-pack of Lumary retaining wall lights is set to approximately 2200K–2700K at a restrained brightness for ordinary evenings.
The transformer is located near a suitable GFCI-protected receptacle and remains accessible. The cable runs behind the wall through protected routes, with compatible waterproof connections positioned according to the installation instructions.
A separate event scene can introduce color for parties, while the everyday scene remains warm and understated. The patio gains definition without requiring a high-mounted floodlight.
2. A Curved Wall Around a Fire Pit
A circular fire-pit area has a curved sitting wall approximately 30 feet long. Placing fixtures strictly every six feet would create about five positions, but the curve and seating orientation change the visual requirements.
Direct light toward the interior floor can shine into the eyes of seated guests across the circle. Instead, the fixtures should be aimed closer to the wall or slightly outward, with low brightness. The fire remains the visual center when it is active.
The owner can install four to six fixtures depending on the nighttime mock-up. More fixtures at lower brightness may produce smoother guidance, while fewer fixtures create stronger pools of light and more darkness between them.
The dimmable Lumary hardscape lighting is set to 2200K for ordinary fire-pit use. That warm setting visually complements flame better than cool white. RGB scenes are reserved for gatherings when the fire is not the primary feature.
Cables and connectors must remain away from excessive heat and follow clearance requirements for the fire feature. The lighting installation should never interfere with fuel lines, fire-rated construction, ventilation, drainage, or the fire-pit manufacturer’s instructions.
The remaining fixtures from the eight-pack can illuminate the approach path or nearby steps rather than being forced into the circular wall.
3. A Patio With Two Steps and a Raised Garden Bed
An illustrative backyard has a 20-foot raised garden wall, two steps leading to an upper lawn, and a short eight-foot wall beside the landing. The project’s priority is recognizing the elevation changes, followed by visual continuity.
Four fixtures can serve the long garden wall, while two or three fixtures are positioned according to the stair geometry and landing. The last fixture can emphasize a corner or transition.
The step-related lights should not simply follow the wall’s six-foot rhythm. Each critical tread, riser, and landing must be evaluated from both directions of travel. Retaining wall lights can improve recognition of those features, but they should not be represented as guaranteed code-compliant stair lighting without project-specific verification.
The adjustable Lumary step and retaining wall lights allow the wall fixtures to graze the planting bed while the stair fixtures point more directly toward the walking surface.
Warm white at moderate brightness becomes the normal setting. A brighter temporary scene can be used while carrying items or cleaning the patio. The automatic schedule turns the lights off after the backyard is normally vacant.
The design succeeds because placement follows function. The lights near the steps are closer together, while the decorative wall section uses wider spacing.
4. An Outdoor Kitchen and Sitting Wall
A covered patio includes a 12-foot outdoor kitchen counter and an 18-foot sitting wall. The homeowner wants enough ambient light to move around the space but already has dedicated countertop and grill lighting.
The retaining wall fixtures should not duplicate the task lights. Three or four fixtures can illuminate the sitting wall, while additional units beneath appropriate hardscape edges can contribute low-level floor illumination near the outdoor kitchen.
The fixtures are aimed away from seated faces and reflective appliance doors. Warm white creates a comfortable everyday environment; saturated colors remain optional for entertaining.
Because cooking and electrical equipment are present, the lighting cable must be kept clear of gas lines, heat sources, plumbing, appliance access panels, and required service clearances. A contractor should coordinate the lighting route with the outdoor kitchen construction.
The smart Lumary patio wall lights can be grouped as one backyard zone. The remote provides convenient local control, while a compatible hub enables specified schedules, remote app access, and Alexa or Google Assistant operation.
The lighting complements rather than replaces the kitchen’s task illumination. This layered approach produces better visual comfort and avoids running every fixture at full brightness.
5. A Multi-Zone Backyard With 16 Fixtures
A larger property has two retaining walls: a 50-foot wall beside the main patio and a 32-foot wall near a pool-adjacent lounge area. The owner selects two eight-light sets.
The nominal lighting load is:
16 × 3W = 48W
Using an illustrative 80% loading target:
48W ÷ 0.80 = 60W
A compatible transformer with at least 60W capacity meets the basic arithmetic, but the long cable routes, transformer output, voltage drop, wire gauge, local requirements, and future expansion must also be considered.
The 50-foot wall can use eight fixtures at roughly six to seven feet apart. The 32-foot lounge wall may not require all eight. Six fixtures could provide adequate coverage, leaving two for an entry, column, or step transition.
Before installation, the owner maps the transformer, two cable branches, fixture order, connectors, and control grouping. The branches are labeled so a future service technician can identify which wall each cable serves.
The two walls can operate as one visual scene or as separate groups. The patio remains at warm white for daily use, while the lounge area can use subdued color during gatherings.
Around any pool or spa environment, specialized electrical rules and clearances apply. Low voltage does not eliminate those requirements. A qualified professional should determine whether the intended fixtures, transformer, cable route, and mounting locations are suitable for the specific aquatic environment.
Editorial Assessment
Retaining wall lights are most effective when they reveal the structure and ground without drawing attention to the light source. They should make a patio feel easier to navigate and more inviting, not turn every stone into a high-contrast spotlight.
Begin with approximately 6 to 7 feet between fixture centers on a straight wall, but treat that as a mock-up interval rather than a final rule. Adjust for wall height, surface color, texture, steps, corners, seating positions, and the fixture’s actual beam. Judge the result after dark.
The Lumary Smart Retaining Wall Light is a strong fit for homeowners who want architectural white light during ordinary evenings and color effects for occasional events. Its 2200K–6500K range, 1%–100% dimming, 270-degree aiming, Bluetooth mesh, group control, remote, and hub-enabled smart functions create more flexibility than a fixed warm-white hardscape light.
The product does require infrastructure. The transformer is not included, and the eight fixtures create a nominal 24W load. The power plan must include a compatible transformer, landscape cable, waterproof connections, a suitable GFCI-protected receptacle, voltage-drop consideration, and accessible service locations.
Installation is easiest while a wall is being built or before capstones are permanently bonded. Existing walls can often be retrofitted, but lifting caps, drilling masonry, cutting cable channels, and routing wire behind a retaining structure should be approached carefully. Drainage and structural components are more important than making a cable route invisible.
For ordinary use, begin with 2200K–2700K at a low brightness and increase output only as needed. Use schedules so the lights do not remain on after the patio is empty. Reserve cool white and animated RGB scenes for short, purposeful periods.
Who Should Buy This Product: Choose the Lumary Smart Retaining Wall Light if you want an eight-fixture, low-voltage system for a patio wall, garden wall, steps, sitting wall, outdoor kitchen, or fire-pit surround—and you value adjustable aiming, tunable white, dimming, and smart color control. It is best for projects where a compatible transformer and cable route can be planned correctly. Choose conventional professional hardscape lighting when you need a fully coordinated landscape ecosystem, solar fixtures when wiring is impractical and modest output is acceptable, or a landscape professional when wall structure, drainage, pools, line-voltage work, or long cable runs complicate the installation.
Frequently Asked Questions
Q1. How far apart should retaining wall lights be?
Start with approximately 6 to 7 feet between fixture centers on a typical straight retaining wall. A wider 7- to 8-foot interval creates distinct pools of light, while closer spacing can create more continuous coverage.
The final spacing depends on wall height, texture, fixture output, aiming angle, nearby lighting, and the desired effect. Place temporary markers first and evaluate the pattern after dark. Around steps, corners, and elevation changes, position lights according to visibility needs rather than maintaining a perfectly uniform decorative interval.
For eight lights at six-foot spacing, the first-to-last center span is 42 feet. At seven-foot spacing, it is 49 feet. Add appropriate margins at both ends when calculating the total wall section.
Q2. What size transformer do eight Lumary retaining wall lights need?
Each fixture is rated at 3W, so eight fixtures create a nominal load of:
8 × 3W = 24W
Using an illustrative design target that keeps the load at or below 80% of transformer capacity:
24W ÷ 0.80 = 30W
A compatible transformer rated for at least 30W satisfies that basic calculation. However, select the actual transformer according to Lumary’s requirements, its 12–24V AC/DC output compatibility, cable distance, voltage drop, environmental rating, connection method, and any planned future fixtures.
The transformer is sold separately. Do not connect the lights directly to 120V household power.
Q3. Should retaining wall lights point down the wall or out toward the patio?
For most installations, begin by aiming the fixtures down the wall and slightly outward. Close-to-wall aiming emphasizes texture and reduces glare. A farther outward angle illuminates more of the patio or walkway but is more likely to become visible from seated positions.
Use the Lumary fixture’s 270-degree adjustment to tune each location after dark. Lights near steps may need greater forward reach, while fixtures behind seating should normally remain closer to the wall. The best angle is the one that reveals the surface and ground without placing the bright source in anyone’s direct view.
Q4. Can retaining wall lights be installed in an existing wall?
They can often be retrofitted, but the difficulty depends on the wall construction. Segmental block walls may allow selected capstones to be lifted so fixtures and low-voltage cables can be installed beneath them. Poured concrete, mortared stone, engineered retaining walls, and walls with inaccessible drainage systems can require more specialized work.
Before modifying an existing wall, identify the cap adhesive, reinforcement, drainage, waterproofing, cable route, and mounting substrate. Do not cut or drill blindly. Use a masonry or landscape-lighting professional when the work could affect structural stability or water management.
Q5. What color temperature is best for patio retaining wall lights?
For everyday patio ambience, approximately 2200K–2700K is usually the strongest starting range. It creates a warm appearance, works well with stone and wood, and produces less blue-rich light than cooler settings.
Settings around 3000K can provide a slightly cleaner, brighter appearance when carefully aimed. Cooler white may be useful temporarily for cleanup or maintenance, but it can feel harsh when used at high brightness around evening seating.
The Lumary system’s 2200K–6500K adjustment lets you create separate scenes: warm and dim for ordinary nights, brighter neutral white for short functional tasks, and color for holidays or gatherings.
