WLED is free, open-source software designed to control addressable LED lights through an ESP32 or compatible microcontroller. Once configured, it provides a browser-based interface for selecting colors, animations, palettes, brightness levels, presets, schedules, and individually defined lighting sections. It is popular for smart outdoor lighting because it offers deeper customization, local-network operation, broad smart-home integration, and more control over individual LEDs than many conventional manufacturer apps.
The term “WLED” can be confusing because it does not refer to a particular light string, LED chip, or wireless protocol. It is firmware—the operating software running on a compatible controller. The physical system still requires suitable LEDs, a correctly sized power supply, compatible voltage, data connections, weather-protected components, and a safe installation. WLED determines how the controller commands the lights; it does not make incompatible electrical hardware work together.
The official WLED Project documentation lists features such as effects, palettes, presets, segments, macros, multi-strip support, white-channel handling, HTTP and JSON APIs, MQTT, E1.31, Art-Net, and other control interfaces. This breadth helps explain its popularity. A user can begin by choosing a preset through a simple web interface and later create more advanced automations without replacing the lighting system.
Addressable LEDs are central to the experience. In a conventional non-addressable RGB string, the connected lights generally display the same color at the same time. In an addressable system, the controller can send data to individual pixels or groups of pixels. This allows a roofline to display chasing colors, moving gradients, alternating patterns, twinkles, waves, or different colors across architectural sections.
WLED organizes parts of a light installation into segments. A segment is a selected range of LED addresses that can receive its own effect, palette, brightness, speed, and direction. For example, a homeowner could define the porch, garage, lower eave, and front gable as separate segments. The porch might display warm white, the garage could remain off, and the gable could show a subtle seasonal accent—all within one coordinated system.
Segments do not physically rewire the installation or create additional power. They are software-defined groups within the configured LED layout. The controller still needs the correct total pixel count, light type, color order, output configuration, and electrical architecture. If a physical string contains 120 lights but the controller is configured for 60, the remaining lights may not respond correctly. If the power supply is insufficient, changing a WLED setting will not solve voltage drop or electrical overload.
Presets are another reason users choose WLED. A preset stores a lighting state so it can be recalled later. It may contain colors, brightness, effects, speed, intensity, segment configuration, and other settings. A homeowner can save one preset for everyday warm white, another for Halloween, another for Christmas, and a low-output security or pathway scene for late-night use.
Playlists can place multiple presets into a sequence. This is useful for a holiday display that moves through several coordinated scenes without requiring manual changes. However, restraint remains important for residential outdoor lighting. Rapid flashing, extreme brightness, or constant movement may be unsuitable near roads, bedrooms, neighboring properties, or photosensitive viewers. Advanced control makes thoughtful programming more important, not less.
WLED is also attractive because its web interface can operate on the local network. Users can access the controller by entering its local address in a browser, provided the device and phone or computer are connected appropriately. This can reduce dependence on a vendor’s cloud service for routine local control. The project’s source code is publicly available through the official WLED GitHub repository, allowing developers and the community to inspect, improve, and extend the software.
Open source does not mean maintenance-free. Firmware versions change, integrations evolve, and users need to understand networking, backups, and updates. A highly customized installation may require more troubleshooting than a closed system designed around a single app. WLED’s flexibility is most valuable to homeowners who want to learn how their system works or who already use platforms such as Home Assistant.
The official Home Assistant WLED integration can represent WLED segments as separate light entities. This enables automations involving time, sunset, household modes, occupancy, weather conditions, or other connected devices. A homeowner might activate low-brightness warm white after sunset, temporarily brighten the porch when someone arrives, and turn decorative zones off at bedtime.
WLED also supports network interfaces such as JSON, HTTP, and MQTT. These interfaces allow custom dashboards, automation systems, scripts, show-control software, and other compatible tools to send commands to the controller. For technical users, this avoids being limited to the scenes a product manufacturer happens to include. For nontechnical users, those capabilities may remain unused; the normal web interface and saved presets can still provide substantial value.
Security must be part of the setup. WLED is best kept behind a properly secured home network rather than exposed directly to the public internet. Change default credentials, use secure Wi-Fi, update supported firmware carefully, and use an appropriate secure remote-access method if control is needed away from home. The WLED project’s security guidance specifically advises changing the default access-point password.
WLED should not be confused with Wi-Fi itself. A controller may initially create a temporary access point for setup and later join the home network. The homeowner still needs adequate signal at the controller location. Metal enclosures, masonry, distance, and exterior placement can reduce wireless performance. Test connectivity at the intended controller location before permanently mounting the entire system.

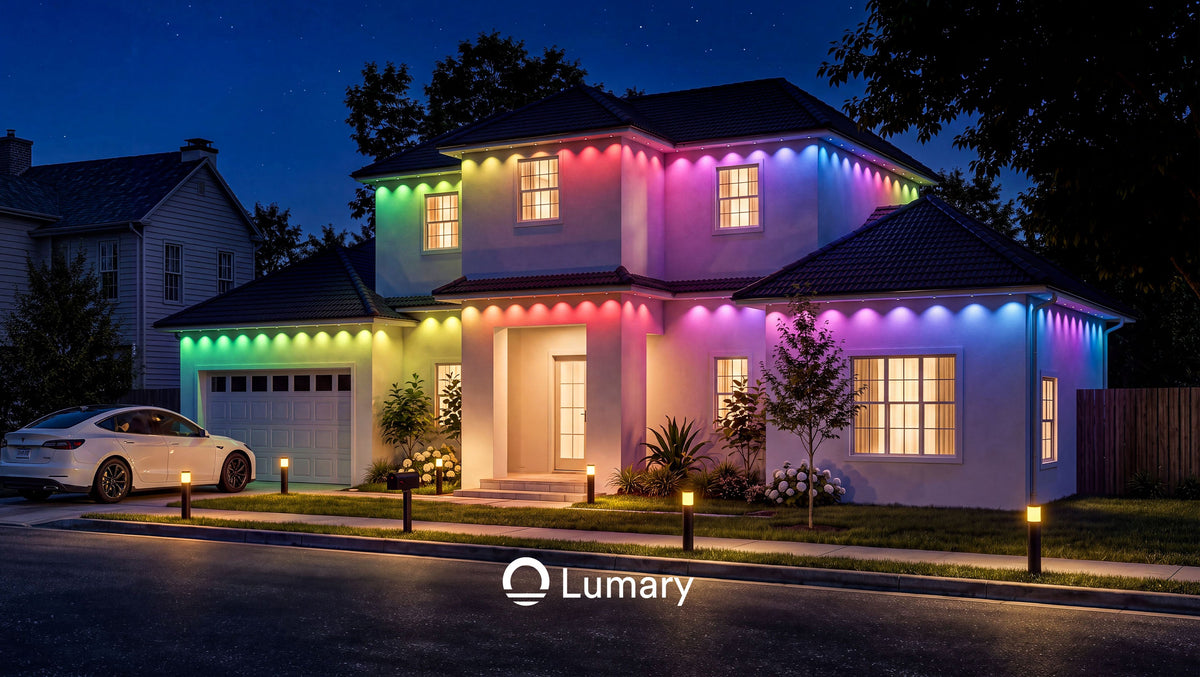

The Lumary Permanent Outdoor Lights 3 combines a commercial permanent-light kit with ESP32 WLED integration. Lumary also supports its own app, remote, control box, Alexa, Google Home, and Home Assistant. This multi-control approach is important: a technical user can explore WLED and home automation, while other household members can use simpler control methods.
WLED’s popularity ultimately comes from control ownership. It gives users more freedom to define how their addressable lighting behaves, how sections are organized, how presets are stored, and how the lights interact with a broader smart home. Its strength is not that it automatically makes lights brighter or safer. Its strength is that it turns compatible LED hardware into a flexible, locally controllable lighting platform.
Product Recommendation Analysis
The Lumary Permanent Outdoor Lights 3 is especially relevant to buyers who want WLED capabilities without designing every physical component from scratch. A traditional DIY WLED project can require selecting a controller, matching pixel protocols, calculating voltage drop, sizing power supplies, waterproofing enclosures, fabricating mounting channels, and configuring the software. Lumary provides a defined outdoor-lighting system with matching standard lengths, adapters, mounting hardware, controller, light strings, and accessories.
Lumary describes the product as using ESP32 WLED integration. Standard configurations are available in 100, 150, 200, and 300 feet with 60, 90, 120, and 180 LEDs. The lights provide RGBAI color plus adjustable 2200K–6500K white output, published at 60 lumens per light. The system also provides 32-zone control, more than 150 preset scenes, 28 music-responsive modes, and an AI lighting creator through the broader Lumary experience.
The product page states that the system can be cut to size or expanded up to 1,200 feet, with additional power supplies required every 300 feet. Separately sold accessories include 24.6-foot light extensions, 12-foot extension cords, connectors, power supplies, supporting frames, and cable covers. WLED support does not change these physical rules. Cutting, extending, branching, injecting power, and configuring controller outputs must follow the Lumary manual and approved system architecture.
For outdoor use, Lumary publishes IP67 ratings for the string lights, control box, and adapter, along with an operating range of -4°F to 113°F. Its patented slide-base is designed to create a low-profile installation and help conceal wiring. These hardware features are important because software flexibility cannot compensate for a poorly sealed connector, unsupported cable, inadequate power, or unsafe ladder work.
The WLED-compatible Lumary roofline lighting system is best for homeowners who want a packaged permanent-lighting platform with an advanced control path. Users who prefer completely turnkey operation can remain within the Lumary app and included controls, while more technical owners can explore WLED and Home Assistant within the documented support boundaries.
Technical Specification Table
| Specification | Lumary Permanent Outdoor Lights 3 |
|---|---|
| WLED support | ESP32 WLED integration |
| Model designations | PO3A1 / PO3A2; PO3B1 / PO3B2; PO3C1 / PO3C2; PO3D1 / PO3D2 |
| Housing colors | White / Black |
| Standard lengths | 100 ft / 150 ft / 200 ft / 300 ft |
| Number of lights | 60 / 90 / 120 / 180 LEDs |
| Published power | 48W / 72W / 96W / 144W |
| Light-string input | DC 36V; 1.33A / 2A / 2.66A / 4A |
| Adapter input | 120V AC, 50/60Hz |
| Light specification | RGBAI + CW |
| Output per light | 60 lumens |
| White-light range | 2200K–6500K |
| Color capability | 16 million colors |
| Lumary zone control | Up to 32 zones |
| Preset scenes | 150+ |
| Music-responsive modes | 28 |
| Control methods | Lumary app, remote, control box, Alexa, Google Home, WLED, Home Assistant |
| Weather ratings | String lights: IP67; control box: IP67; adapter: IP67 |
| Operating-temperature range | -4°F to 113°F (-20°C to 45°C) |
| Mounting system | Patented low-profile slide-base with included mounting hardware |
| Maximum published expansion | Up to 1,200 ft |
| Additional power boundary | Additional power supplies required every 300 ft |
| Add-on light segment | 24.6 ft, sold separately |
| Custom fitting | Product page states that the system can be cut to size; follow the manual |
WLED Purchasing and Configuration Framework
A successful WLED installation needs compatibility at four levels: physical lights, electrical design, controller configuration, and network integration. Buyers sometimes focus only on whether the word “WLED” appears on a product page. That is an important starting point, but it does not answer how many lights are supported, how white channels are handled, where extra power is required, or which setup procedures preserve manufacturer support.
Use the packaged product’s documentation as the authority for hardware limits. Use the WLED documentation to understand software functions such as effects, segments, presets, APIs, and integrations. When instructions conflict, do not apply generic DIY wiring practices to a commercial system.
| Key Purchasing Criterion | Common Sign of a Poor-Quality Unit | How This Lumary Permanent Outdoor Lights 3 Addresses It | Long-Term Usage / Performance Impact |
|---|---|---|---|
| Documented WLED support | Users must replace the controller or reverse-engineer the protocol | Publishes ESP32 WLED integration | Reduces the need for unsupported controller modification |
| Multiple control paths | Advanced control is the only way to operate basic functions | Also supports Lumary app, remote, control box, Alexa, and Google Home | Keeps routine operation accessible to less technical household members |
| Addressable zoning | Entire roofline must show one color or effect | Provides 32-zone control and WLED-compatible segment concepts | Supports architectural sections and selective everyday lighting |
| White-light capability | “White” is produced only by mixing RGB channels | Includes adjustable 2200K–6500K white light | Makes the system more useful for everyday architectural lighting |
| Defined kit sizes | Hardware and controller limits are unclear | Offers 100-, 150-, 200-, and 300-ft configurations with stated light counts | Simplifies initial design and configuration |
| Power architecture | Marketing implies software can support unlimited LEDs | Requires additional power supplies every 300 ft | Establishes a physical planning boundary independent of WLED |
| Compatible expansion | Users must mix third-party strings and connectors | Offers 24.6-ft extensions, connectors, cords, and power supplies | Reduces pressure to improvise weather-exposed wiring |
| Weather protection | Controller or adapter rating is omitted | Publishes IP67 for strings, control box, and adapter | Provides clearer outdoor-placement information |
| Local automation potential | System depends completely on a vendor cloud | Supports WLED and Home Assistant | Allows broader local-network routines and segment-level automation |
| Preset depth | Product offers only a few fixed holiday scenes | Provides 150+ Lumary scenes, WLED effects, and custom creation paths | Supports continued use beyond the initial holiday season |
| Physical installation | Software features overshadow mounting quality | Uses a slide-base and included mounting hardware | Helps produce a discreet, repeatable roofline |
| Configuration transparency | Pixel count and output settings are hidden from the user | WLED provides configurable LED and segment concepts | Enables advanced control when configured according to Lumary instructions |
| Security management | Default credentials are never mentioned | WLED permits local setup and user-managed network configuration | Gives owners more control, while making secure setup their responsibility |
| Ecosystem longevity | Product functions only inside one mobile app | Works with WLED, Home Assistant, voice assistants, remote, and control box | Reduces dependence on one interface or automation platform |
Competitive Landscape
Smart outdoor-lighting systems generally follow one of three control models: a closed manufacturer app, a professional installer platform, or an open/customizable controller such as WLED. Each model serves a different user. A closed app may be easier initially, a professional platform can include installation and support, and WLED provides greater control for owners willing to learn its configuration.
Govee is a leading consumer brand for permanent outdoor lights and offers a large scene library, individual color effects, music response, and smart-home integration. WIRED’s permanent outdoor lights comparison praises the feature depth of Govee’s app while noting that it can feel busy. Most Govee buyers use the official ecosystem. Some community members modify compatible hardware to work with separate WLED controllers, but such projects should not be confused with official WLED support or manufacturer-approved wiring.
Eufy emphasizes app usability, RGB plus dedicated white light on selected systems, AI-created scenes, and Matter integration. WIRED found its permanent-light products adaptable to nonstandard architecture. Eufy can be a good fit for users who want a polished consumer experience without learning WLED. Technical buyers should verify official compatibility rather than assuming that addressable LEDs can automatically be connected to any WLED controller.
GE Cync provides a simpler value-oriented eave-light option. Its strength is accessible app-based control and straightforward installation rather than open controller customization. This model suits households that prefer selecting scenes and schedules through one manufacturer interface. It offers less reason to learn segments, JSON APIs, MQTT, or custom firmware.
Twinkly uses camera-assisted mapping to understand how individually addressable lights are arranged. TechRadar’s Twinkly Strings review highlights mapped animations and visual effects. Twinkly’s mapping approach can be especially useful for irregular arrangements such as trees and railings, while WLED appeals more to users who want manual segment definitions, open interfaces, and deeper smart-home integration.
JellyFish, Gemstone, Trimlight, and similar professionally installed systems package the survey, mounting track, controller, programming, warranty, and ongoing support. These systems may cost considerably more, but they reduce the owner’s need to configure electrical and software details. WLED is more attractive to DIY users who value local control and customization; a professional platform is stronger for “install it and support it for me.”
DIY pixel systems built around WLED offer maximum component choice. Users can select controllers, LED protocols, power supplies, injection points, tracks, enclosures, and custom network integrations. The tradeoff is responsibility. A DIY builder must understand voltage drop, current capacity, fusing, grounding, weather protection, data integrity, and code-appropriate power installation. Community discussions in r/WLED about permanent outdoor lighting repeatedly distinguish flexible DIY systems from turnkey installations.
Lumary’s advantage is that it combines the two approaches. The Lumary Permanent Outdoor Lights 3 platform provides a defined hardware system, mounting architecture, accessories, outdoor ratings, and multiple simple controls while also advertising ESP32 WLED integration and Home Assistant support. That combination is particularly relevant to buyers who want advanced control without sourcing every electrical component separately.
Application Scenarios
1. Everyday Warm White With Holiday Presets
Consider a one-story home with 100 feet of Lumary lights across the front eave and garage. The owners want restrained warm-white architectural lighting most evenings, but also want Halloween, Christmas, and sports-team scenes without reinstalling temporary lights.
The practical WLED strategy is to make the everyday state the default rather than designing the most elaborate holiday effect first. Configure the correct total LED count according to Lumary’s documentation, then define logical segments for the porch, main eave, and garage. Save a low-brightness warm-white preset within the supported 2200K–6500K range.
Create separate holiday presets only after the basic configuration is stable. Halloween might use slow purple-and-orange movement; Christmas could use red, green, and warm white; game day could place team colors on alternating architectural zones. Avoid continually rebuilding the segment layout. Stable segments make presets easier to maintain because the same porch or garage group remains meaningful throughout the year.
The 100-foot WLED-compatible Lumary system contains 60 lights and is listed at 48W. WLED changes how those lights are commanded; it does not change their published electrical rating. Brightness limiting may reduce actual demand in some scenes, but electricity use should be measured at the outlet when precise data matters.
For other family members, preserve access through the remote, Lumary app, or control box. The installation should not become unusable whenever the person who understands WLED is away. Document the names of the main presets and keep a backup of the working configuration before experimenting with advanced effects or firmware updates.
2. Home Assistant Automations for Porch and Garage Zones
A technically minded homeowner may want the roofline to respond to household events rather than run one fixed timer. Suppose the porch and garage need warm white after sunset, while decorative gable lights should activate only on selected dates.
Define the physical ranges as WLED segments and verify that each segment corresponds to the intended architecture. Home Assistant’s official WLED integration can expose multiple segments as separate light entities. This allows the porch, garage, and gable to participate in different automations without installing separate lighting systems.
A normal routine might turn the porch and garage segments on at sunset at modest brightness, then turn the garage segment off at 11:00 p.m. while leaving the porch at a lower level for another hour. A holiday calendar condition could activate a saved decorative preset on the gable. A household “party” scene could temporarily override the routine and restore the normal state afterward.
Do not treat the roofline as required security or life-safety lighting. Smart-home software, Wi-Fi, controllers, and automations can fail. Required entry, stair, emergency, or security lighting should remain on appropriately designed systems. Permanent decorative lights can complement those systems but should not replace them without a project-specific code and safety review.
The Lumary system with WLED and Home Assistant support makes this layered strategy possible while retaining app, voice, remote, and control-box operation. Before building complex automations, confirm that manual operation remains understandable and that a failed automation cannot leave the lights flashing all night.
3. A 300-Foot Multi-Gable Installation
Now consider a large house requiring the 300-foot configuration with 180 lights. The route includes a lower garage, front porch, two upper gables, and a side elevation. WLED’s segments can make this long installation easier to operate, but the physical design must come first.
Draw every section and record its start and end pixel numbers after the system has been installed and configured according to Lumary’s instructions. Name segments by architecture rather than by temporary events: “Porch,” “Garage,” “Left Gable,” “Right Gable,” and “Side Eave” remain useful all year, while names such as “Red Section” quickly become confusing.
Use WLED presets to apply scenes to those stable sections. A quiet everyday preset can illuminate only the porch and lower eave. A full-house holiday preset can activate all sections. A late-night preset can reduce brightness and turn off the upper gables. This is more useful than treating all 180 lights as one undifferentiated animation.
The 300-foot Lumary permanent outdoor-light configuration is listed at 144W and already reaches Lumary’s published threshold at which additional power supplies are required for further expansion. WLED cannot authorize another string, increase conductor capacity, or eliminate voltage drop. Any extension beyond the documented configuration must follow the manufacturer’s power and accessory rules.
Before final mounting, test the complete planned system at ground level. Confirm pixel count, direction, white handling, segment boundaries, maximum-brightness behavior, and recovery after power interruption. Once lights are installed on upper gables, troubleshooting a reversed segment or incorrect count becomes slower and more hazardous.
4. Coordinated House and Detached Garage Lighting
Assume a property has 240 feet of lighting on the house and 120 feet on a detached garage. The owner wants both buildings to display coordinated scenes but does not want to run an improvised cable across the driveway.
Treat the buildings as separate physical systems with their own approved power and controller arrangements. WLED can synchronize compatible controllers over the network, but network coordination does not require the light strings to be physically connected. This distinction can create a cleaner and safer design for detached structures.
First confirm adequate Wi-Fi coverage at both controller locations. A phone showing one bar of signal beside the garage is not a sufficient commissioning test. Place the controller at the intended location, connect it through the documented setup process, and observe reliability over several days. If network coverage is poor, improve the network rather than exposing controllers or routing unsupported data cables outdoors.
Create matching presets on both systems and test timing. Exact visual synchronization may depend on network performance, effect design, and controller behavior. For slow color changes and static architectural scenes, minor timing differences may be inconsequential. A tightly choreographed pixel show requires more deliberate show-control planning.
The expandable Lumary WLED lighting platform publishes a 1,200-foot ceiling and requires additional power supplies every 300 feet. That does not imply that multiple buildings should be wired as one continuous string. The physical topology must follow the manual, existing receptacles, local electrical requirements, and safe outdoor installation practices.
Home Assistant can provide a higher-level “whole property” scene that calls the appropriate house and garage presets together. This gives the homeowner unified operation while preserving separate electrical systems and clearer troubleshooting boundaries.
5. Music-Synchronized and Custom Event Lighting
A homeowner hosting backyard events may want the roofline to react to music, display custom colors, or run animated playlists. WLED is popular in this setting because it offers effects, palettes, segments, presets, and interfaces that can support deeper customization than a few fixed holiday buttons.
Start with the audience and environment. Keep animation speeds comfortable, prevent intense flashes, and avoid directing extreme brightness toward neighboring windows or traffic. Music-responsive lighting should enhance the gathering rather than become a continuous distraction. Provide a stable non-flashing alternative for guests who may be sensitive to rapid visual changes.
The Lumary app already provides 28 music-responsive modes, more than 150 scenes, and an AI lighting creator. WLED offers another control path for users who want to build their own segment behavior, playlists, or external integrations. Decide which interface is responsible for the event before it begins; sending competing commands from several platforms can create confusing results.
Save and test the event configuration in advance. Confirm how the system behaves if Wi-Fi briefly disconnects, a phone leaves the network, or power is interrupted. Keep the remote or control box accessible so the lights can be stopped without navigating a technical dashboard.
The Lumary addressable outdoor lighting system supports 32 zones, RGBAI color, adjustable white light, and multiple control ecosystems. WLED expands the creative ceiling of the system, but the most professional-looking event designs usually use a limited palette, moderate brightness, and clear architectural sections.
After the event, restore an everyday preset automatically or manually. One of WLED’s greatest practical benefits is not merely creating a complex show—it is moving reliably between a complex show and a quiet, useful daily lighting state.
Editorial Assessment
WLED is popular because it gives addressable-light owners more control than a conventional scene-based app. Segments, presets, playlists, palettes, effects, local web control, APIs, MQTT, and Home Assistant integration allow one permanent installation to serve everyday architectural lighting, holidays, events, and custom automation.
Its openness also creates responsibility. Users must understand which settings belong to software and which limits belong to hardware. Pixel count, controller outputs, cable length, voltage, power supplies, connectors, and weather protection cannot be safely inferred from a WLED screen. The product manufacturer’s instructions remain authoritative for the physical system.
Lumary Permanent Outdoor Lights 3 offers an attractive middle path. It provides defined lengths, published electrical specifications, outdoor-rated components, a slide-base mounting system, compatible accessories, app and remote control, and official marketing support for ESP32 WLED and Home Assistant. That makes it more accessible than designing a complete DIY pixel installation while remaining more customizable than many closed consumer kits.
The strongest setup begins with the Lumary-documented physical configuration. Once the system operates correctly, the owner can define WLED segments, create presets, connect Home Assistant, and add more advanced automations gradually. Back up the working configuration, secure the network, change default credentials, and test updates before depending on new behavior.
Who Should Buy This Product: Choose the Lumary Permanent Outdoor Lights 3 if you want a packaged permanent roofline-lighting system with simple household controls and an advanced WLED path for customization. WLED is most valuable for users who want local control, segment-based designs, custom presets, or Home Assistant integration. A simpler closed-app product may suit buyers who never expect to move beyond built-in scenes, while a fully DIY WLED system suits experienced builders who want to select every component themselves.
Frequently Asked Questions
Q1. Does WLED require an internet connection?
WLED can perform core control functions on a local network without relying on a cloud service. A phone or computer connected to the same network can generally access the controller’s web interface, change colors, activate presets, and adjust segments. This local-control model is one reason smart-home enthusiasts value WLED.
Internet access may still be needed for initial downloads, firmware updates, outside services, time synchronization, or remote-access methods. The exact behavior also depends on how the commercial product implements WLED and its other control platforms.
Do not expose the controller directly to the public internet merely for convenience. Keep it behind a secured router, change default credentials, and use a properly configured secure remote-access method if off-site control is required. Review the official WLED security information before changing network exposure.
Q2. Is WLED difficult for beginners to use?
Basic operation is approachable: connect the compatible controller, open the interface, choose a color or effect, and save a preset. Complexity increases when the user changes LED protocols, output pins, pixel counts, color order, segment boundaries, network settings, APIs, or electrical hardware.
A packaged system such as Lumary reduces some of the hardware-selection burden because the controller, strings, adapters, and accessories are designed as one product family. Beginners should follow the Lumary setup guide, record the original configuration, and create a backup before experimenting.
Start with three tasks: verify the correct light count, save one everyday preset, and define one or two meaningful architectural segments. Add Home Assistant, playlists, and advanced interfaces only after the basic system is stable. WLED does not require every user to become a programmer, but its deeper capabilities reward careful learning.
Q3. Can WLED control every outdoor LED light?
No. WLED supports many digital addressable LED types, but compatibility depends on the controller, data protocol, voltage, color order, white-channel design, and product implementation. A light being “smart,” “RGB,” or “addressable” does not automatically make it WLED-compatible.
The safest choice is a product that explicitly documents WLED support, such as the Lumary Permanent Outdoor Lights 3. Do not replace a commercial controller, connect unknown strings to an ESP32, or change wiring based solely on a community post. Incorrect voltage or pin assignments can damage lights or create a safety hazard.
WLED’s official compatibility and wiring documentation is useful for DIY components. For a packaged commercial system, follow the manufacturer’s controller and accessory instructions first. Official support is more meaningful than theoretical protocol compatibility.
Q4. What is the difference between WLED segments and Lumary’s 32 zones?
Both concepts divide a long lighting installation into controllable sections, but they belong to different control interfaces. Lumary advertises up to 32 zones within its product ecosystem. WLED segments are software-defined ranges of LED addresses that can receive their own colors, effects, palettes, brightness, speed, and direction.
The two systems may represent similar architectural ideas—porch, garage, gables, or side eaves—but users should not assume their numbering, limits, or saved configurations are identical. Define and test the layout in the interface being used.
For long-term clarity, name zones or segments after permanent parts of the house rather than temporary colors. “Front Porch” remains meaningful in every season; “Orange Section” does not. Keep a written record of pixel ranges before creating numerous presets.
Q5. Does using WLED let you add unlimited lights to a system?
No. WLED may be capable of addressing large numbers of LEDs in appropriate hardware configurations, but the physical system remains limited by controller capacity, memory, outputs, data integrity, wire length, voltage drop, conductor size, connectors, and power supplies.
Lumary states that Permanent Outdoor Lights 3 can expand up to 1,200 feet and requires additional power supplies every 300 feet. Those are product-planning boundaries, not settings that WLED can bypass. The actual layout, output allocation, extension placement, cutting procedure, and power arrangement must follow Lumary’s current manual.
If additional lights fail to illuminate correctly, do not automatically raise current limits, replace the power supply, or inject power using generic internet diagrams. Verify the supported configuration and use compatible Lumary accessories. Software can direct pixels; it cannot remove electrical limits.
