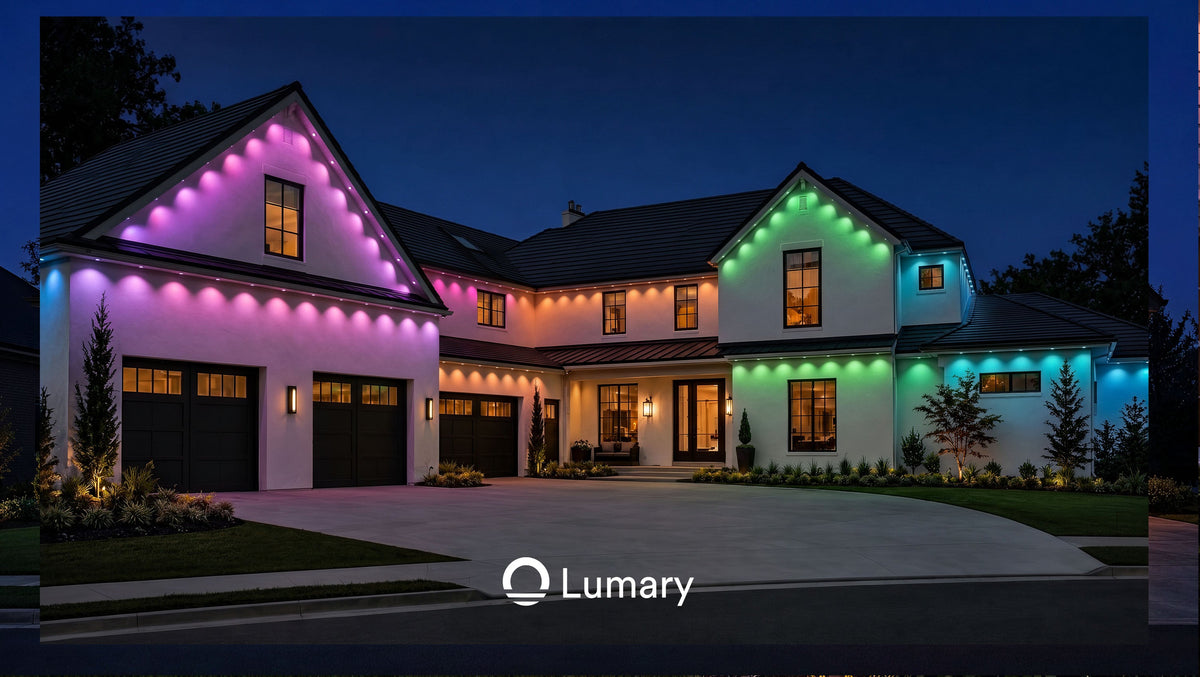

What Should You Check Before Installing Permanent Lights Under a Soffi

Before installing permanent lights under a soffit, check seven things: the soffit material, the structural support behind it, ventilation openings, the mounting surface’s condition, light-to-wall distance, cable and power routing, and safe access to every installation point. A soffit may look like one continuous flat surface from the ground, yet contain thin vinyl panels, aluminum sections, vents, seams, channels, loose areas, and unsupported spans. Permanent lights should not be mounted until the entire path has been inspected and compared with the manufacturer’s instructions.

The first question is whether the soffit can support the mounting system. Wood soffits may provide a relatively straightforward fastening surface when the wood is sound, but vinyl and aluminum soffit panels are usually finish materials rather than structural framing. Stucco, fiber cement, open rafters, and decorative trim introduce different fastening requirements. The Polymeric Exteriors Products Association’s soffit-installation guide explains that soffit construction can involve receiving channels, nailing strips, open or enclosed eaves, vented panels, and spans requiring additional support. This is why fastening into whichever visible panel is easiest to reach is not a reliable installation method.

Inspect the full route for sagging panels, corrosion, rot, cracked material, peeling paint, loose fasteners, water stains, insect damage, and previous repairs. If the soffit moves noticeably when lightly pressed from a safe position, determine why before attaching lights. A permanent-light installation will not repair a deteriorated eave. It may instead conceal a problem or add repeated wind movement to a panel that already lacks secure support. Repair the exterior assembly first, then mount the lighting to a location approved for the product and substrate.

Ventilation is the next essential check. Soffit vents allow outside air to enter the attic as part of a broader ventilation system. PEPA notes that proper attic ventilation is important and that vented soffit or other vented products should be used where required. ENERGY STAR’s guidance on attic ventilation and rafter vents similarly explains that soffit vents need a clear channel for air to travel into the attic and toward ridge or gable exhaust vents. Do not cover perforations with mounting bases, wire covers, adhesive strips, sealant, or tightly bundled cable. If the intended line crosses a continuous vent strip, choose a different mounting position or obtain guidance from a qualified exterior contractor.

Light placement also controls the nighttime result. Permanent eave lights commonly create an architectural pool or scallop of light on the wall below. Moving the light closer to the wall usually produces a smaller, more concentrated pattern; moving it farther away generally broadens the projection and may make the individual cones appear less pronounced. Wall color, texture, soffit depth, light output, fascia geometry, and viewing distance all change the appearance, so there is no universal offset that is correct for every house.

The best approach is to create a temporary nighttime mock-up. Secure several unpowered mounting bases or safely support a short powered section without permanent drilling, following the manufacturer’s handling instructions. Test at two or three consistent offsets and view the effect from the driveway, street, and main outdoor living area. Community discussions about permanent-light distance from the wall report widely different homeowner preferences, reinforcing that borrowed measurements are not a substitute for testing on the actual house. Equal alignment is usually more important than copying another installation’s exact number.

Map power before installing the first light. Identify the receptacle, adapter location, controller location, first light, connection points, unlit transitions, and final endpoint. Outdoor power should not depend on an improvised indoor cord routed through a window or a connection left where water collects. The Consumer Product Safety Commission’s GFCI guidance identifies outdoor receptacles as locations where ground-fault protection is important. NFPA’s outdoor electrical-safety guidance also discusses weather-resistant outdoor receptacles, GFCI protection, and weatherproof covers that remain protective while a plug is inserted.

Published weather ratings need to be interpreted accurately. The Intertek explanation of IEC 60529 ingress-protection testing shows that an IP rating represents defined resistance to solids and water. It does not mean that a connector can be left partially assembled, a cable can be pinched against metal, or an adapter can sit in standing water. Inspect the planned route for gutter overflow, roof runoff, sprinkler spray, snow accumulation, sharp flashing, and low points where water may follow the cable.

Finally, evaluate installation height and terrain. A permanent-light project requires repeated cycles of positioning, fastening, descending, and moving—often dozens of times. OSHA’s extension-ladder safety fact sheet recommends three-point contact and proper setup, while extension ladders also require stable ground and adequate clearance from electrical hazards. If the soffit can only be reached by leaning sideways, placing a ladder on a slope, or working near service conductors, use professional access equipment or hire a qualified installer.

The Lumary Permanent Outdoor Lights 3 is designed around a low-profile slide-base that helps conceal the wiring, with mounting hardware included. Lumary publishes IP67 ratings for the string lights, control box, and adapter, along with 100-, 150-, 200-, and 300-foot configurations. Those features support an organized soffit installation, but they do not eliminate the need to confirm backing, preserve ventilation, mock up the light pattern, plan power, and verify safe access before mounting begins.

Product Recommendation Analysis

The Lumary permanent soffit-lighting system is a strong fit for homes with a continuous, serviceable eave and a verified fastening path. Its patented slide-base is designed to keep the installation clean and low-profile while helping conceal the cable. Unlike a temporary seasonal string that may tolerate visible clips and loose loops, this product is intended to remain installed, so the condition and alignment of the soffit have a larger influence on long-term appearance.

Lumary offers 100-, 150-, 200-, and 300-foot configurations with 60, 90, 120, and 180 lights. The product page states that the system can be cut to size or expanded up to 1,200 feet, with additional power supplies required every 300 feet. Separately available 24.6-foot light strings, extension cords, connectors, supporting frames, wire covers, and power supplies can help adapt a route to complex eaves. Every cut, extension, connector, and power boundary should follow the current user manual rather than a generic permanent-light tutorial.

For everyday use, the system combines RGBAI color with adjustable 2200K–6500K white light and publishes an output of 60 lumens per light. It provides 32-zone control, more than 150 preset scenes, an AI lighting creator, and 28 music-responsive modes. Control options include the Lumary app, remote, control box, Alexa, Google Home, WLED, and Home Assistant.

The Lumary Permanent Outdoor Lights 3 should be selected only after the soffit survey and route measurement are complete. It is well suited to a sound wood or properly supported soffit with a consistent mounting plane. A home with loose vinyl panels, blocked ventilation options, no usable eaves, unresolved water damage, or unsafe upper-level access needs exterior repair, an alternative mounting design, or professional installation before product features become relevant.

Technical Specification Table

Pre-Installation Soffit Inspection Framework

Complete the inspection in daylight before unpacking the entire system. Draw the intended light line, mark every vent, seam, corner, downspout, obstruction, and transition, and identify the structure that will receive the mounting hardware. Then perform a temporary nighttime light-pattern test before final fastening.

A practical worksheet should include the route section, soffit material, fastening support, ventilation condition, chosen wall offset, water exposure, access method, and power path. Any section that cannot be described confidently should remain uninstalled until it has been inspected by someone familiar with the exterior assembly.

Competitive Landscape

Permanent soffit lights from different brands may look similar in photographs, but their mounting systems, cutting rules, controller placement, node spacing, power architecture, and app ecosystems differ. Before selecting a brand, inspect the soffit first and redraw the same route for every candidate. A product that fits a flat wood soffit may require a different plan on vented vinyl, narrow aluminum, open rafters, or stucco.

Govee is one of the best-known DIY alternatives. Consumer Reports’ Govee Permanent Outdoor Lights review describes adhesive-backed light pucks and the appeal of completing one installation instead of rehanging seasonal lights. Govee offers deep scene control, but the installer still needs to decide whether adhesive is suitable for the soffit and where mechanical support is necessary.

Tom’s Guide’s review of the Govee Permanent Outdoor Lights Prism shows the system mounted beneath a soffit and discusses the practical installation process. Govee is relevant to buyers prioritizing a mature smart-lighting ecosystem, while the physical result still depends on surface preparation, cable alignment, consistent offset, and safe ladder positioning.

Eufy competes with customizable RGB and white light, app scheduling, and flexible routing on supported models. WIRED’s permanent outdoor lights comparison found Eufy’s system adaptable to nonstandard architectural features and praised its app experience. A buyer with irregular soffits should compare exactly where Eufy permits cuts and extensions rather than assuming one brand’s connection rules apply to another.

GE Cync occupies a more value-oriented position. WIRED found its Dynamic Effects Outdoor Smart Eave Lights straightforward to install and noted their preapplied adhesive. This can reduce initial installation time on a compatible clean surface, but adhesive convenience should not replace a long-term assessment of heat, moisture, texture, paint condition, and soffit movement.

Twinkly Strings provide a more flexible alternative for homes that cannot support a concealed permanent soffit line. TechRadar’s Twinkly Strings review emphasizes camera-based mapping and animation. This category may suit balconies, railings, trees, and removable holiday displays, but its visible string format produces a different daytime appearance from low-profile architectural eave lights.

JellyFish Lighting and similar professional systems serve homeowners who prefer a measured, fabricated, and installed track. The higher initial cost incorporates site surveying, substrate evaluation, track fitting, elevated access, and service. On tall homes or complex soffits, professional installation may offer more value than selecting a DIY kit solely by price.

Lumary’s position combines a DIY-oriented slide-base, four published lengths, adjustable white and RGBAI color, 32-zone control, multiple smart-home integrations, and expansion up to 1,200 feet. The Lumary permanent outdoor-light platform is especially suitable when the homeowner wants concealed cable management and an explicit power-supply interval. The final decision should be based on soffit compatibility and route execution rather than the number of available scenes alone.

Application Scenarios

1. Solid Wood Soffit on a One-Story Ranch

Consider a one-story ranch with painted wood soffits, level concrete around the house, and approximately 92 feet of intended roofline coverage. This is one of the more favorable DIY conditions, but the installer should still confirm that the visible material is sound wood rather than thin cladding installed over damaged boards.

Begin with a daylight inspection. Look for soft areas, peeling paint, open joints, old nail holes, dark water stains, and evidence that the fascia or gutter has leaked. Probe only in a non-damaging manner and repair deteriorated material before mounting. Mark the intended route with removable painter’s tape, maintaining one consistent reference line from the wall or fascia rather than following minor variations in the panel edges.

Next, temporarily test several lights after dark. The product publishes 60 lumens per light, but lumen output alone cannot predict the appearance of the scallops on a particular wall. A pale smooth wall may reflect more light than dark brick, while a deep soffit permits a wider range of offsets. Compare at least two positions and photograph them using the same camera exposure. Select the position that creates a balanced wall pattern without excessive glare into windows.

Because the total route is approximately 92 feet, the 100-foot Lumary permanent-light configuration may be appropriate after the controller lead, endpoint, and permitted fitting method are confirmed. Lay out the entire system on the ground and test it before mounting. Do not assume that eight nominally unused feet can be folded, doubled back, or hidden without following the manual.

During installation, move the ladder for each new working position instead of leaning sideways. Keep cable tension neutral; the wiring should not pull against the first light, connector, or corner. Once complete, inspect the line from the ground in daylight and darkness. This project is a good DIY candidate because the substrate, access, and route are uncomplicated—not merely because the lights include mounting hardware.

2. Vented Vinyl Soffit With No Obvious Structural Backing

Now consider a two-story suburban home with perforated vinyl soffit panels. The homeowner initially plans to screw each light directly into the visible vinyl and run wire covers over the ventilation slots. That approach needs to be reconsidered before installation begins.

Vinyl soffit is an exterior finish system that may move with temperature and may not offer adequate pull-out resistance by itself. The PEPA soffit installation guidance describes receiving channels, nailing strips, solid and vented panels, and construction-dependent installation methods. Locate verified backing or develop a substrate-appropriate mounting method consistent with the light manufacturer’s instructions and the soffit system. Do not tighten fasteners in a way that distorts the panel or restricts its intended movement.

The perforations also serve a purpose. Covering a continuous row of vents with bases, cable, or sealant can interfere with intake airflow. ENERGY STAR explains that soffit vents need clear channels to move air into the attic. Map the vented and solid areas along the entire route. If no continuous solid strip exists, an exterior contractor may be able to identify an appropriate supported mounting position or determine whether a properly designed trim solution is suitable.

The nighttime mock-up is particularly important because vinyl soffits can be deep and the wall may have projecting trim. Temporarily test the Lumary low-profile slide-base lights without blocking vents. Check whether the chosen offset creates consistent light cones across siding, windows, and corners.

Because the second story increases both access risk and installation repetition, professional mounting may be the rational choice even when the homeowner completes the route design and app setup. Provide the contractor with the light offset, backing locations, prohibited vent areas, controller position, and complete tested system. This separates design decisions from hazardous access and helps prevent the installer from improvising the alignment at height.

3. Aluminum Soffit Near Gutters and Heavy Roof Runoff

An aluminum soffit may appear strong because it is metal, but thin formed panels can bend, rattle, corrode, or pull away from their channels. Assume a home has aluminum soffits beneath gutters that occasionally overflow during intense rain. Before installing lights, the homeowner must solve both fastening and water-routing questions.

Inspect the gutter, fascia, drip edge, and soffit for staining or corrosion. Water tracks on the underside of the eave indicate that the planned lighting path may experience more than ordinary wind-driven rain. Clean the gutters and correct drainage defects before placing electrical equipment below them. A published IP67 rating does not make an installation immune to incomplete connectors, damaged cable, or repeated water concentration.

Intertek’s IP-code explanation is useful here: ingress ratings reflect standardized test conditions. They do not approve a specific mounting orientation or guarantee performance after a connector is assembled incorrectly. Keep connectors fully engaged as directed, preserve seals, avoid cable low points that collect water, and position the adapter and controller according to Lumary’s instructions.

Determine what lies behind the aluminum. A screw that passes only through a thin panel may not provide reliable long-term support. Also identify sharp panel edges and seams that could abrade a cable as the soffit expands, contracts, or vibrates in wind. Use only compatible mounting hardware and protective routing methods; do not add unapproved holes or sealants to the product.

The IP67-rated Lumary Permanent Outdoor Lights 3 includes a slide-base intended to conceal wiring, which can help maintain a controlled route. However, wire concealment must not create a hidden water trap. After installation, inspect the system from the ground following the first heavy rain and again after a freeze-thaw cycle. If the gutter continues to overflow onto the lights, correct the building drainage rather than relying on the fixture rating as the primary defense.

4. Deep Porch Soffit With a Continuous Vent Strip

Imagine a covered porch with a 24-inch-deep soffit and a continuous vent strip positioned near the wall. The owner wants a pronounced scalloped light pattern on brick, but mounting close to the wall would interfere with the vent, while mounting near the fascia may produce a broader and less defined wash.

The correct response is not to cover the vent. Preserve the ventilation path and test alternative positions in the available solid area. Temporarily hold a short light section at several offsets, using a safe method that does not damage the soffit. Evaluate the wall pattern at the brightness and color temperature likely to be used every day. Warm white around the lower portion of the product’s 2200K–6500K range may interact with red brick very differently from saturated holiday colors.

Also view the lights from seated positions on the porch. A location that looks attractive from the street may expose the light lenses directly to people sitting beneath the eave. If glare is uncomfortable, a different offset or brightness setting may be preferable. The goal is not necessarily the sharpest possible scallop; it is a balanced result for the principal viewing areas.

Community comments about soffit placement frequently mention offsets of a few inches, but the recommendations vary because soffit depths and walls vary. Treat those discussions as inspiration rather than specifications. A consistent tested line on the actual porch is more reliable than copying a number from a different brand, building, or light output.

The adjustable-white Lumary outdoor eave lights allow the porch to use quiet warm white on ordinary evenings and color scenes for events. Zone control can separate the porch from garage and upper-gable sections. The installation succeeds when it preserves the vent, avoids direct glare, remains mechanically supported, and produces the desired wall wash—not simply when every available foot is illuminated.

5. Second-Story Gables With Sloped Ground and Nearby Service Lines

A home with second-story gables may have perfectly suitable soffits but still be a poor DIY installation candidate. Suppose the front gable reaches 24 feet above a sloped lawn and the side eave is close to overhead service conductors. The product configuration may be easy to understand, yet access becomes the dominant risk.

Survey the route from the ground and photograph every section. Mark soffit seams, vented panels, downspouts, corners, controller location, and the intended transition from the first story to the gable. Use plans, a laser device, or an aerial measurement report to estimate the upper sections rather than climbing solely to collect measurements.

OSHA’s extension-ladder safety guidance recommends three-point contact and appropriate setup. A long permanent-light installation also encourages repeated lateral reaching as the installer tries to avoid moving the ladder. That behavior should be treated as a stop signal, not an efficiency technique. Sloped ground, wet grass, wind, traffic, and electrical conductors further reduce the suitability of ordinary ladder access.

A professional installer can use appropriate access equipment, verify backing at height, and maintain the selected offset around the peak. The homeowner can still test the full Lumary 200- or 300-foot lighting configuration on the ground, label every section, and provide a finalized route drawing. This keeps paid aerial time focused on mounting rather than design decisions.

After installation, use the app, remote, control box, or supported smart-home platform from the ground. The permanent format removes the need for seasonal rehanging, but it does not eliminate occasional inspection. Check visually after severe weather and arrange safe professional access if a section becomes loose. On a tall house, the strongest value proposition is not just colorful lighting; it is completing one carefully planned installation without turning future holiday decorating into repeated high-elevation work.

Editorial Assessment

A soffit is suitable for permanent lights only when it provides an appropriate mounting path without sacrificing ventilation, drainage, electrical safety, or maintainability. The visible finish alone does not answer that question. Wood, vinyl, aluminum, stucco, fiber cement, and open eaves each require different judgment about support and fastening.

The most important pre-installation action is a complete mock-up and route survey. Identify backing, mark vents, inspect deterioration, choose a consistent light offset, test the wall pattern after dark, and map every power component. Correct gutter leaks and exterior damage before installing. If any connection, cable route, or fastener depends on an undocumented workaround, revise the plan.

Lumary provides a relatively explicit system envelope: four standard lengths, listed light counts and power levels, IP67 ratings for its main components, a slide-base, compatible accessories, 24.6-foot light extensions, a 300-foot power-supply interval, and expansion up to 1,200 feet. These features support a well-planned installation; they do not make every soffit universally compatible.

A one-story home with sound, accessible eaves and verified support can be a practical DIY project. Vented vinyl, thin aluminum, tall gables, uncertain framing, water damage, steep terrain, and nearby electrical conductors favor professional evaluation or installation. The final standard should be whether every component can be mounted, powered, inspected, and serviced without improvisation.

Who Should Buy This Product: Choose the Lumary Permanent Outdoor Lights 3 if your home has a sound soffit or eave with a verified mounting method, clear ventilation, suitable outdoor power, and a route that can be accessed safely. Use a siding, roofing, electrical, or exterior-lighting professional when the substrate, outlet, water exposure, or installation height remains uncertain.

Frequently Asked Questions

Q1. Can permanent outdoor lights be screwed directly into vinyl soffit?

Not automatically. Vinyl soffit panels are exterior finish components and may not provide adequate structural holding strength on their own. The correct method depends on the panel profile, framing, receiving channels, available backing, fastener type, and the lighting manufacturer’s instructions.

PEPA’s soffit installation manual shows that vinyl soffits can include nailing strips, vented panels, and channels that vary with eave construction. Identify what is behind the intended mounting line before drilling. Avoid deforming the panel, restricting thermal movement, or placing hardware through ventilation openings.

If backing cannot be verified from accessible documentation or inspection, ask a siding or exterior contractor to identify a suitable mounting method. Do not compensate with longer random screws because hidden electrical wiring, framing geometry, and roofing components may be present. A short test section on an accessible eave should be inspected for movement and alignment before committing to the full house.

Q2. Can the lights cover soffit vents?

They should not block required soffit ventilation. Vented soffits supply intake air to the attic, and covering perforations with light bases, cable covers, adhesive, or sealant may reduce airflow. ENERGY STAR’s guidance on installing rafter vents explains the importance of keeping the soffit-to-attic air channel clear.

Mark every vented area before choosing the light line. If the soffit contains alternating solid and perforated panels, determine whether a continuous supported route exists on the solid portion. For a continuous vent strip, test a location on the other side of the vent or obtain a substrate-specific mounting recommendation.

Do not assume a narrow cable creates no effect merely because it covers only part of a perforation pattern. Local ventilation requirements and the building’s overall intake and exhaust design matter. When the only visually desirable position blocks vents, preserving the building system should take priority over the lighting effect.

Q3. How far from the wall should permanent soffit lights be installed?

There is no universal distance that works for every house. The correct offset depends on soffit depth, wall material, lens design, light output, window placement, and the desired wall-wash pattern. Moving lights closer to the wall usually concentrates the projection, while moving them farther away generally broadens it and changes how the scallops overlap.

Temporarily test several lights at two or three equal offsets after dark. Use the same scene, brightness, and camera exposure for each test, then view the results from the street and primary outdoor spaces. Avoid copying an online measurement without testing; homeowner reports in this soffit-placement discussion vary substantially.

Once the position is chosen, create a simple spacer or marking guide so every base follows the same line. Consistency is usually more visible than a small difference in nominal offset. Confirm that the chosen line does not block vents or place fasteners into unsupported material.

Q4. Is adhesive enough for permanent soffit lights?

Adhesive may assist positioning on a clean, smooth, compatible surface, but its long-term reliability depends on surface material, paint condition, texture, temperature, moisture, contamination, and product instructions. Chalky paint, dusty vinyl, oxidized aluminum, rough wood, and damp surfaces can reduce adhesion.

For a permanent installation, follow Lumary’s specified mounting method and use the included hardware as directed. Clean and dry the surface using only preparation methods compatible with both the soffit and mounting material. Do not apply adhesive over peeling paint or deteriorated substrate because the bond will be no stronger than the loose finish beneath it.

Mechanical attachment also needs verified support. A screw through a thin panel is not necessarily more secure than adhesive if it does not engage appropriate backing. The best installation uses the manufacturer-approved combination of mounting base, hardware, substrate, and spacing. Inspect a test section before completing the full route and recheck it after significant heat, cold, or storms.

Q5. Where should the controller, adapter, and connections be placed?

Place every component according to Lumary’s current instructions, while considering water runoff, drainage, service access, cable strain, and proximity to a suitable receptacle. Although Lumary publishes IP67 ratings for the string lights, controller, and adapter, the components still require correct assembly and should not be positioned in standing water, gutter discharge, or locations where snow and debris accumulate.

Use a suitable outdoor power source with appropriate protection. The CPSC GFCI fact sheet explains the role of ground-fault protection, while NFPA’s outdoor guidance discusses weather-resistant receptacles and covers that remain weatherproof while a plug is connected.

Keep connectors accessible enough for inspection without leaving them unsupported. Avoid sharp soffit edges, pinched wire covers, tight bends, and cable loops that channel water toward a connection. If a new receptacle, branch circuit, or modification to household wiring is required, use a qualified electrician. Product weather resistance and safe building wiring are related but separate requirements.
